(9-18) - GAUGE WHEEL KIT (14 FOOT), (HK60979 GAUGE WHEEL KIT COMPLETE-TO BE ORDERED THRU WHOLEGOODS ONLY)

Запчасти Case IH SC414 (9-18) - GAUGE WHEEL KIT (14 FOOT), (HK60979 GAUGE WHEEL KIT COMPLETE-TO BE ORDERED THRU WHOLEGOODS ONLY) (09) - CHASSIS

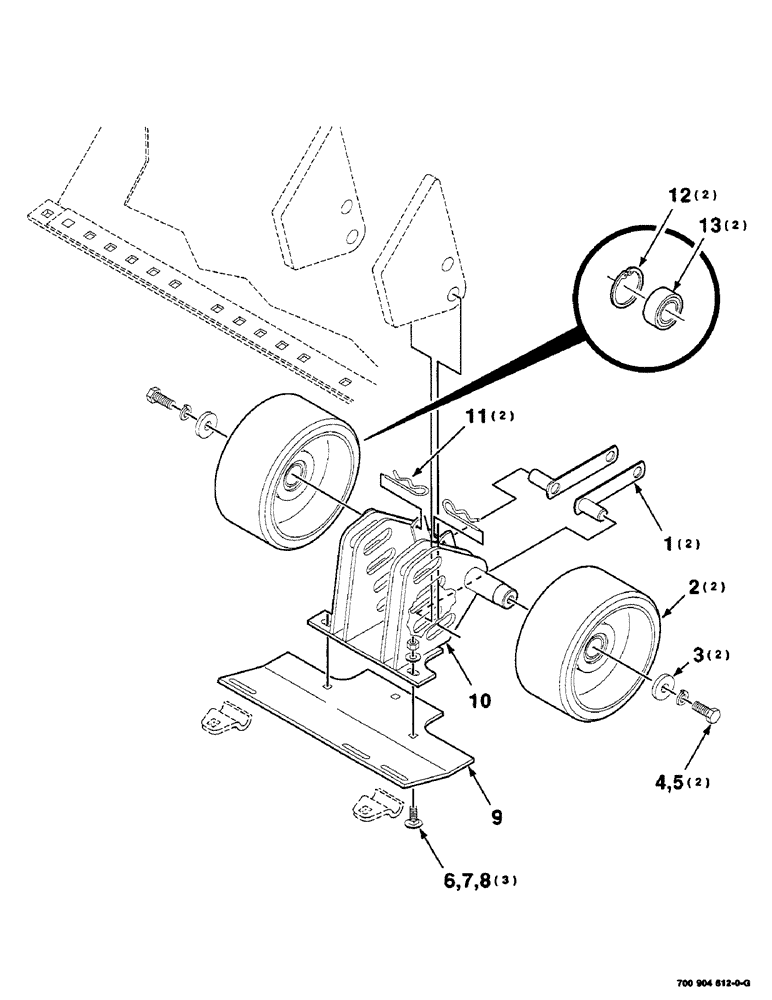

Схема запчастей Case IH SC414 - (9-18) - GAUGE WHEEL KIT (14 FOOT), (HK60979 GAUGE WHEEL KIT COMPLETE-TO BE ORDERED THRU WHOLEGOODS ONLY) (09) - CHASSIS
9
6
5
4
3
2
7
12
13
11
10
8
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

HK60979

GAUGE WHEEL KIT COMPLETE

1шт.

1

700150357

PIN

WA

2шт.

2

700119691

WHEEL

ASSEMBLY - gauge (includes items 12 and 13)

2шт.

3

6223374

WASHER

2шт.

4

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

6

707042

BOLT,#3, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 PLOW BOLT

3шт.

7

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

3шт.

8

425-106

NUT,3/8"-16, Cl 5

3шт.

9

700150360

SHOE

- skid

1шт.

10

700150354

SUPPORT

- wheel

1шт.

11

T54573

PIN

.120 WIRE HAIRPIN COTTER

2шт.

12

100-21218

SNAP RING,2.165", Int, #216

Ring, Snap, 2.165", Int, #216

2шт.

13

700709106

BEARING, ROLLER, CYL,29.99mm ID x 55mm OD x 23.02mm W

BEARING - cylindrical

2шт.
