(9-06) - DECALS AND LOCATION DIAGRAM (HEADER - LEFT)

Запчасти Case IH SC414 (9-06) - DECALS AND LOCATION DIAGRAM (HEADER - LEFT) (09) - CHASSIS

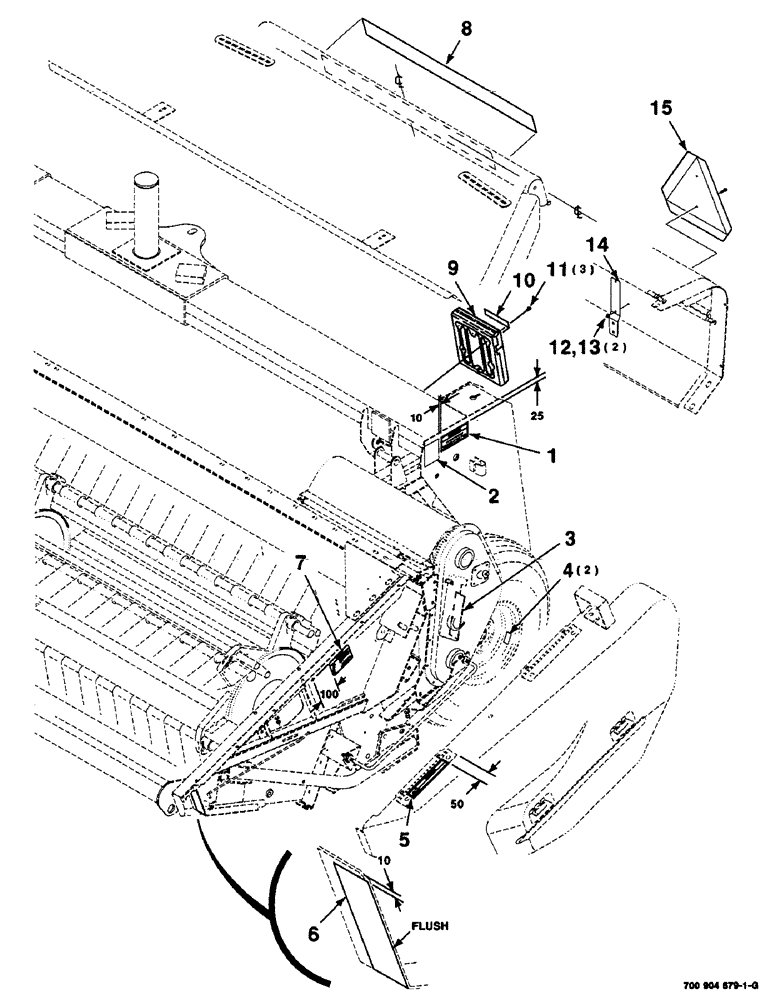

Схема запчастей Case IH SC414 - (9-06) - DECALS AND LOCATION DIAGRAM (HEADER - LEFT) (09) - CHASSIS
12
15
7
4
14
5
10
11
1
6
2
8
9
13
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

779199

DECAL

warning

1шт.

2

78840

DECAL

patent

1шт.

3

700717402

REFLECTOR

red

1шт.

4

700707196

DECAL

tire pressure

2шт.

5

700715851

DECAL

danger

1шт.

6

700717403

REFLECTOR

yellow

1шт.

7

700705786

DECAL

notice

1шт.

8

700717046

DECAL

combo SC412, rear

1шт.

700716991

DECAL

combo SC414, rear

1шт.

9

700714418

HOLDER

manual

1шт.

10

700714585

DECAL

manual holder

1шт.

11

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

1/4-20 x 1/2 HWHTCTS

3шт.

12

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

1/4-20 x 3/4 HWHMS

2шт.

13

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

14

7020597

BRACKET

SPADE

1шт.

15

7020589

EMBLEM

SMV

1шт.
