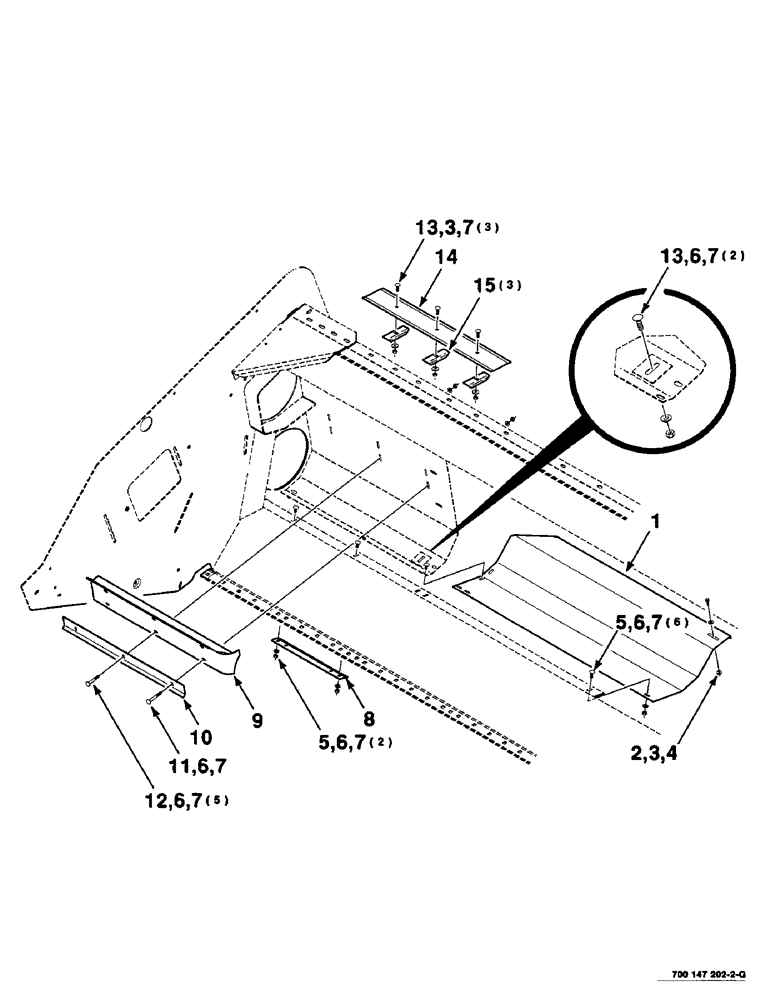

Запчасти Case IH SC414 (7-44) - HEADER AUGER PAN & STRIPPER ASM. - RIGHT (14 FOOT) (09) - CHASSIS

1

700124319

PAN

- auger, right

1шт.

2

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

1шт.

3

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

4шт.

4

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

1шт.

5

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

8шт.

6

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

16шт.

7

425-105

NUT,5/16"-18, G5

19шт.

8

700136371

STRAP

- retainer

1шт.

9

700136258

STRIPPER

WA - right 14 foot

1шт.

10

700109704

ANGLE

- stripper, right

1шт.

11

433-540

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/2", Gr 5

5/16-18 X 2-1/2 RHSNB

1шт.

12

433-536

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/4", Gr 5

5/16-18 X 2-1/4 RHSNB

5шт.

13

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5

5шт.

14

700136373

PAN

- filler

1шт.

15

700136368

CLIP

- retainer

3шт.
