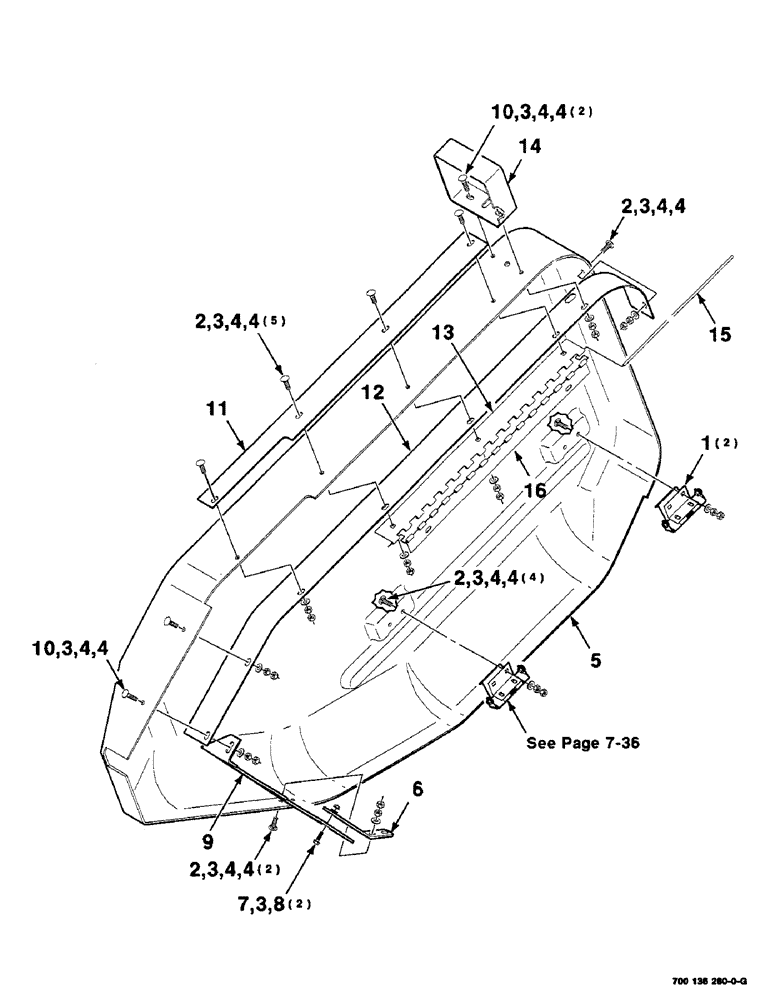

Запчасти Case IH SC414 (7-34) - SHIELD ASSEMBLY (RIGHT) (09) - CHASSIS

1

700150402

LATCH

ASSEMBLY

2шт.

2

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5

12шт.

3

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

17шт.

4

425-105

NUT,5/16"-18, G5

30шт.

5

700716305

SHIELD

- right

1шт.

6

700136290

STOP

STRAP - lower

1шт.

7

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

2шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

2шт.

9

700136287

SUPPORT

- upper right

1шт.

10

433-520

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

5/16-18 X 1-1/4 RHSNB

3шт.

11

700150406

STRAP

- reinforcement

1шт.

12

700136281

STRAP

- right

1шт.

13

700134859

HINGE

- right

1шт.

14

70134850

GUARD - flasher

1шт.

15

65250

PIN,4.76mm OD x 571.5mm L

- hinge

1шт.

16

700134857

HINGE

- right

1шт.
