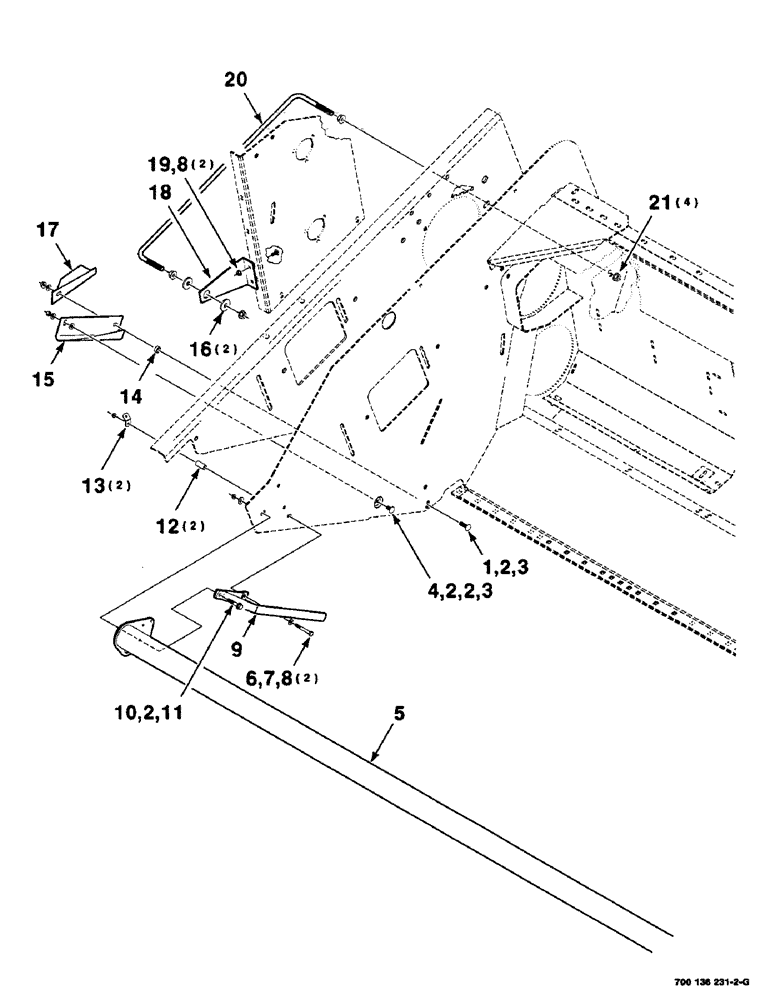

Запчасти Case IH SC414 (7-22) - DIVIDERS, LEANBAR AND MOUNTING ASSEMBLIES (RIGHT) (09) - CHASSIS

1

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

1шт.

2

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

4шт.

3

425-106

NUT,3/8"-16, Cl 5

2шт.

4

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

1шт.

5

700124284

BAR

LEAN BAR (12 foot)

1шт.

700124285

BAR

LEAN BAR (14 foot)

1шт.

6

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

7

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

+ D1044ER 11/32" x 11/16" x 0.89", HDN

2шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

4шт.

9

700111947

DEFLECTOR

STRAP WA - deflector

1шт.

10

700711134

SCREW

3/8-16 X 1-3/4 HFS GR8

1шт.

11

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

1шт.

12

6828107

TUBE,10.57 mm ID, 19.05 mm OD, 40 mm Length

2шт.

13

700134873

MOUNTING PARTS

MOUNT - rod

2шт.

14

6212740

SPACER

1шт.

15

700136268

GUARD

- cover

1шт.

16

6223374

WASHER

2шт.

17

700111941

SHIELD

- sickle

1шт.

18

700136256

SUPPORT

MOUNTING - rod

1шт.

19

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

20

700134721

GUIDE

- shield, right

1шт.

21

329-288

FLANGE NUT,Flg, 1/2"-13, G8

4шт.
