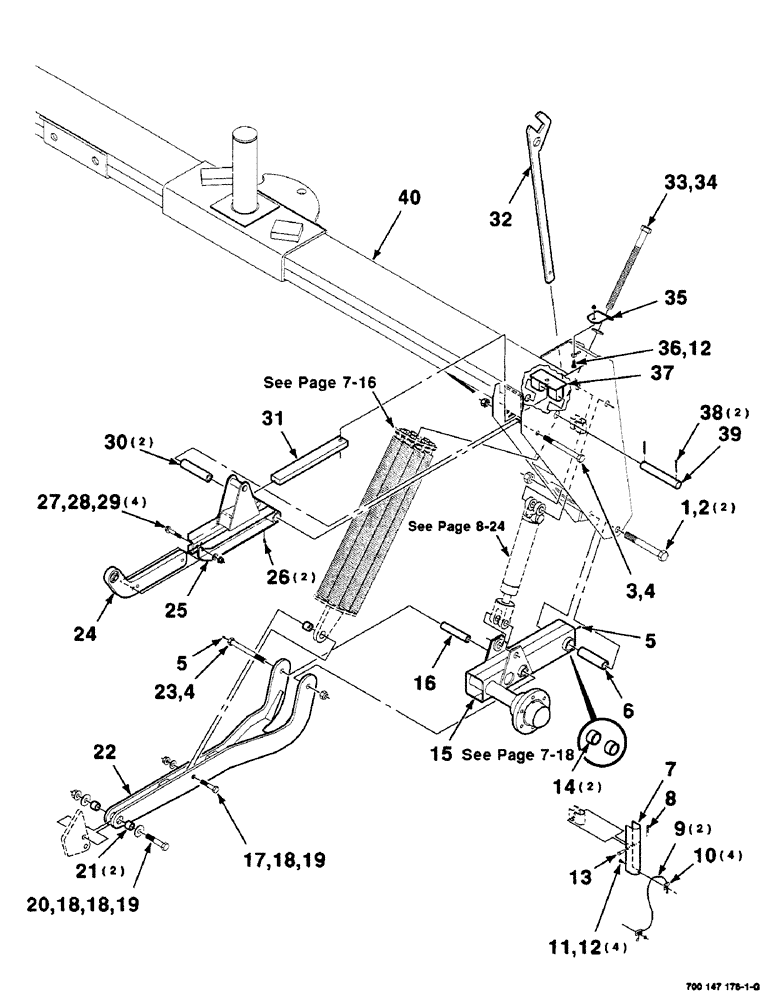

Запчасти Case IH SC414 (7-12) - FLOTATION ASSEMBLY - LEFT (SC414) (09) - CHASSIS

1

413-16128

BOLT,Hex, 1" - 8 x 8", Gr 5

1-8 X 8 B

2шт.

2

425-1016

NUT,1"-8, G5

2шт.

3

414-12128

BOLT,Hex, 3/4" - 16 x 8", Gr 5

3/4-10 X 8 B

1шт.

4

230-41112

LOCK NUT,3/4"-10, GA

3/4-10 HTLN GR/B

2шт.

5

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

6

700115166

SLEEVE,25.96mm ID x 38.1mm OD x 138mm L

1шт.

7

700115186

STOP

- safety

1шт.

8

T54573

PIN

.120 HAIR PIN COTTER

1шт.

9

700706805

CABLE

2шт.

10

700114675

ANCHOR

- cable

4шт.

11

706176

SCREW

5/16 X 3/4 CRTHMS

4шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

5шт.

13

63644

CLEVIS PIN

3/8 X 2-1/8 CLEVIS PIN

1шт.

14

852459

BRONZE BUSHING

BUSHING - bronze

2шт.

15

700115197

STRUT

WA - left (includes item 14)

1шт.

16

700115164

BUSHING,19.84mm ID x 28.58mm OD x 140mm L

1шт.

17

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

.75 X 3 UNC GR5 YZD

1шт.

18

700711166

WASHER

3/4 HARDENED WIDE PLAIN WASHER

3шт.

19

232-53112

FLANGE NUT,Flg, 3/4"-10

3/4-10 HFTLN GR/G

2шт.

20

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

3/4-10 X 4 C

1шт.

21

700147242

BUSHING

2шт.

22

700147233

ARM

WA - lower

1шт.

23

700115167

BOLT

- special

1шт.

24

700147229

ARM

WA - upper

1шт.

25

700147220

ARM

WA - upper, rear

1шт.

26

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

2шт.

27

700711133

BOLT

1/2-13 X 2-3/4 HFS GR8

4шт.

28

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

4шт.

29

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

4шт.

30

700115165

BUSHING

3шт.

31

700716882

SPRING

- leaf

1шт.

32

700136302

SPECIAL WRENCH

WRENCH - header reverse

1шт.

33

700717862

BOLT

1-8 X 14 B

1шт.

34

705574

WASHER,1 1/8" x 2" x .156", HDN

1шт.

35

700150400

RETAINER

1шт.

36

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5

1шт.

37

700150426

MOUNTING PARTS

MTG WA - spring

1шт.

38

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

2шт.

39

700115163

PIN

- spring, anchor

1шт.

40

700147170

FRAME

MAINFRAME WA (SC412)

1шт.
