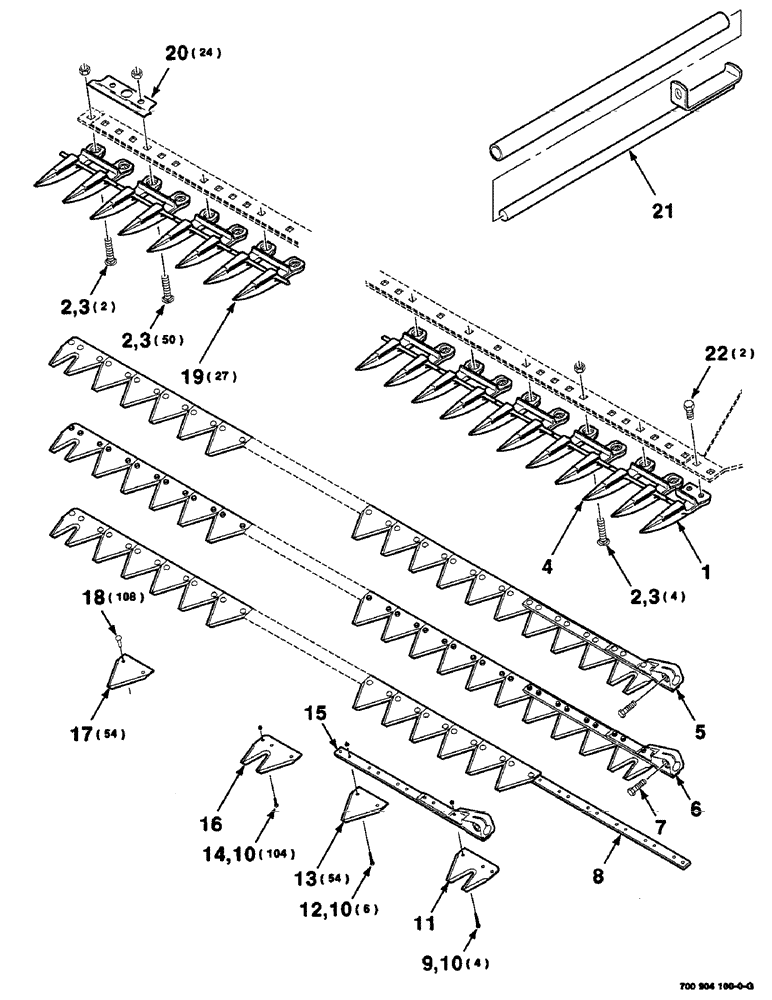

Запчасти Case IH SC414 (3-04) - SICKLE & GUARD ASSEMBLY - RANGE GUARD (14 FOOT) (09) - CHASSIS

1

NLS

NO LONGER SERVICED

- single

1шт.

2

433-724

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

7/16-14 X 1-1/2 RHSNB

56шт.

3

425-107

NUT,7/16"-14, G5

56шт.

4

700707464

GUARD

- double

1шт.

5

700110731

KNIFE

SICKLE ASSEMBLY - 14 foot (with head-riveted)

1шт.

6

700709623

KNIFE ASSY

SICKLE ASSEMBLY - 14 foot (with head-bolt eze)

1шт.

7

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

8

700115804

KNIFE

SICKLE ASSEMBLY - 14 foot (without head-riveted)

1шт.

9

700706479

BOLT AND NUT

#12-24 X 1-1/4 BOLT (box of 25 bolts and locknuts)

1шт.

10

1954816C1

LOCK NUT

#12-24 LOCKNUT

114шт.

11

700705462

KNIFE SECTION

SECTION - double, left end

1шт.

12

700705297

KIT

#12-24 X 1 BOLT (box of 25 bolts and locknuts)

1шт.

13

700705300

KNIFE SECTION

SECTION - top serrated, heavy duty .092 thick (packaged 25 per box)

1шт.

14

700705296

BOLT AND NUT

#12-24 X 5/8 BOLT (box of 50 bolts and locknuts)

1шт.

15

700111003

KNIFE HEAD

SICKLE HEAD WA

1шт.

16

700705463

KNIFE SECTION

SECTION - double, right end

1шт.

17

NLS

NO LONGER SERVICED

SICKLE SECTION - smooth, standard .105 thick (packaged 25 per box)

1шт.

18

990817R91

RIVET

#5-1/2 X 9/16 ROUND HEAD RIVET (1 lb. box of approx. 140 rivets)

1шт.

19

700716292

GUARD

- double

27шт.

20

700134757

PLATE

HOLDDOWN

24шт.

21

6135081

GUARD

STRAIGHTENER TOOL

1шт.

22

414-716

BOLT,Hex, 7/16" - 20 x 1", Gr 5

2шт.
