(2-42) - U-JOINT ASSEMBLY (LOWER - 14 FOOT), (700715726 U-JOINT ASSEMBLY COMPLETE)

Запчасти Case IH SC414 (2-42) - U-JOINT ASSEMBLY (LOWER - 14 FOOT), (700715726 U-JOINT ASSEMBLY COMPLETE) (09) - CHASSIS

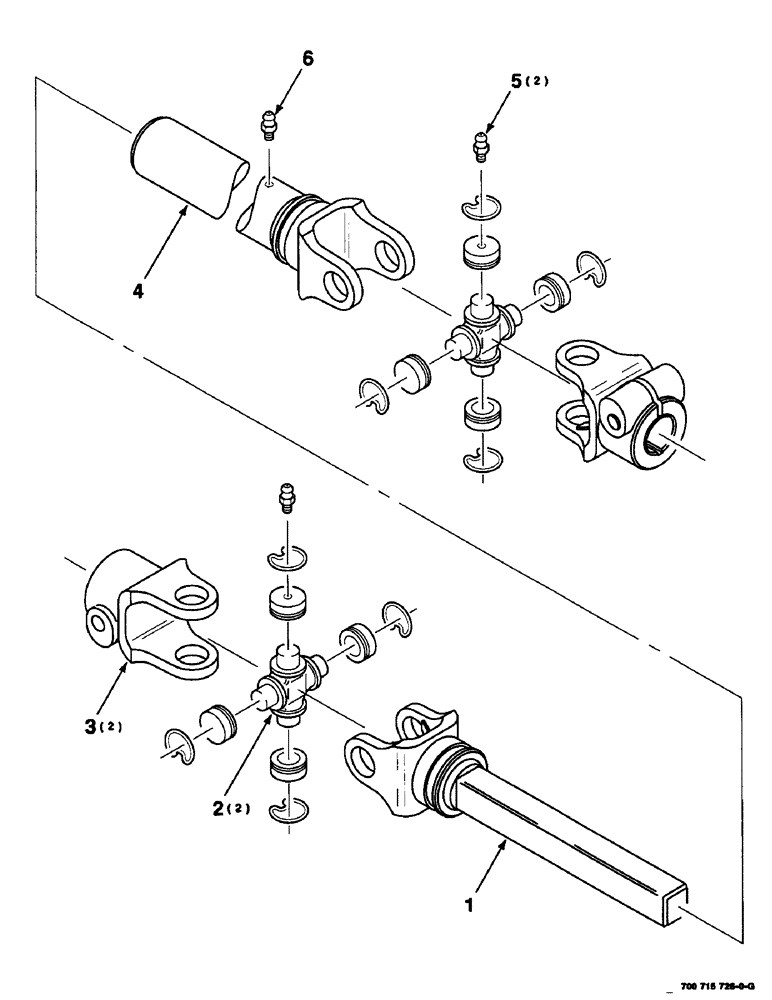

Схема запчастей Case IH SC414 - (2-42) - U-JOINT ASSEMBLY (LOWER - 14 FOOT), (700715726 U-JOINT ASSEMBLY COMPLETE) (09) - CHASSIS
2
4
3
5
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700715726

UNIVERSAL JOINT

U-JOINT ASSEMBLY COMPLETE

1шт.

1

700716409

LINKAGE YOKE

YOKE AND SHAFT

1шт.

2

700711843

FLEXIBLE JOINT

CROSS AND BEARING KIT (includes item 5)

2шт.

3

757716

CLAMP

YOKE

2шт.

4

700716418

LINKAGE YOKE

SLIP YOKE

1шт.

5

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

2шт.

6

219-425

LUBE NIPPLE,1/4" - 28

ZERK

1шт.
