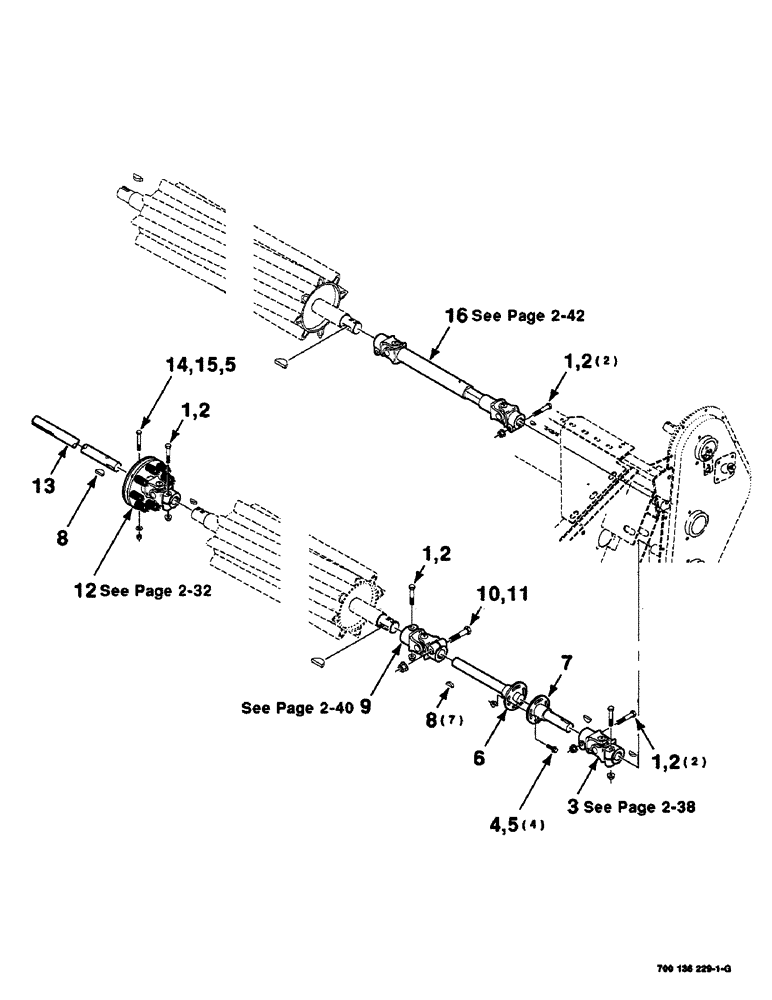

Запчасти Case IH SC414 (2-36) - HAY CONDITIONER DRIVE ASSEMBLY (14 FOOT) (09) - CHASSIS

1

703736

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2-13 X 2-3/4 C

6шт.

2

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

6шт.

3

700715720

UNIVERSAL JOINT

U-JOINT

1шт.

4

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

4шт.

5

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

5шт.

6

700134819

SHAFT

WA - 14 foot left

1шт.

7

700133248

SHAFT

WA

1шт.

8

126-36

WOODRUFF KEY,#23, 5/16" x 1 3/8"

8шт.

9

700715721

UNIVERSAL JOINT

U-JOINT

1шт.

10

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

11

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

1шт.

12

700710451

CLUTCH

- u-jooint

1шт.

13

700121373

SHAFT

- 14 foot

1шт.

14

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

C Hex, 3/8"-16 x 2 3/4", G5

1шт.

15

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

1шт.

16

700715726

UNIVERSAL JOINT

U-JOINT - 14 foot

1шт.
