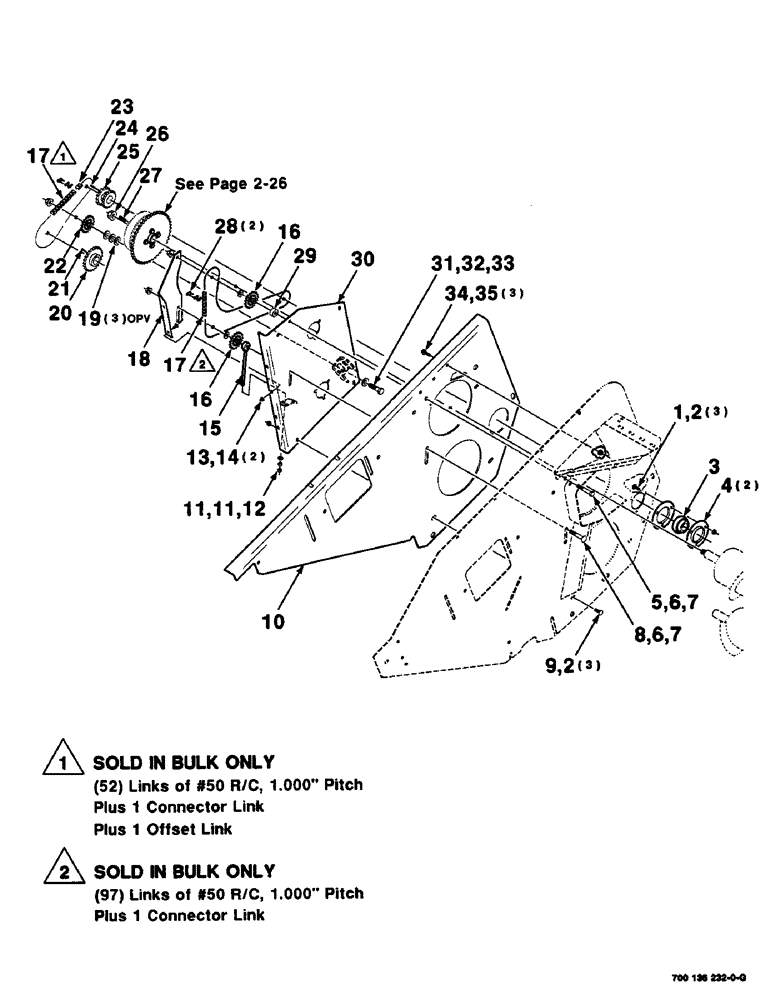

Запчасти Case IH SC414 (2-24) - AUGER DRIVE ASSEMBLY (RIGHT) (09) - CHASSIS

1

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

3шт.

2

329-286

FLANGE NUT,Flg, 3/8"-16, G8

6шт.

3

710004

PTO SHAFT

- spherical

1шт.

4

617863R1

FLANGED BEARING

- bearing

2шт.

5

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1/2-13 X 3 C

1шт.

6

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

2шт.

7

329-288

FLANGE NUT,Flg, 1/2"-13, G8

2шт.

8

433-848

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

1/2-13 X 3 RHSNB

1шт.

9

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

3шт.

10

700136244

PANEL

- right end

1шт.

11

425-106

NUT,3/8"-16, Cl 5

2шт.

12

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

1шт.

13

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

2шт.

15

700110653

ROD

DRAWBOLT WA

1шт.

16

7087398

DRIVE SPROCKET

SPROCKET - idler, 17 tooth

2шт.

17

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

CHAIN - roller, #50 (10 foot bulk)

2шт.

18

700136299

SUPPORT

- idler

1шт.

19

52233

BUSHING

5/8 X 14 GAUGE NRMB

3шт.

20

700136277

SPROCKET ASSY.

SPROCKET WA - 26 tooth

1шт.

21

249-1

KEY

1/4 X 1 3/4 KEY - gib

1шт.

22

631905R91

SPROCKET

- idler, 17 tooth

1шт.

23

241-1715

LINK,15.88mm Pitch

OFFSET LINK

1шт.

24

761155

BUCKET TOOTH KEY

1/4 X 2 KEY - gib

1шт.

25

700717935

SPROCKET ASSY.

SPROCKET - 50C14

1шт.

26

7775067

FLANGE NUT,Flg, 3/4"-16, G8

3/4-16 HFN GR8

1шт.

27

O5528N

KEY

1/4 X 2-1/2 STRAIGHT KEY

1шт.

28

47530

LINK, CONNECTING

NO. 50 CONNECTOR LINK

2шт.

29

700110624

SPACER

1шт.

30

700136273

PLATE

WA

1шт.

31

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

5/8-11 X 2-1/4 C

1шт.

32

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

1шт.

33

7704919

FLANGE NUT,Flg, 5/8"-11, G8

5/8-11 HFN GR8

1шт.

34

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

3шт.

35

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

3шт.
