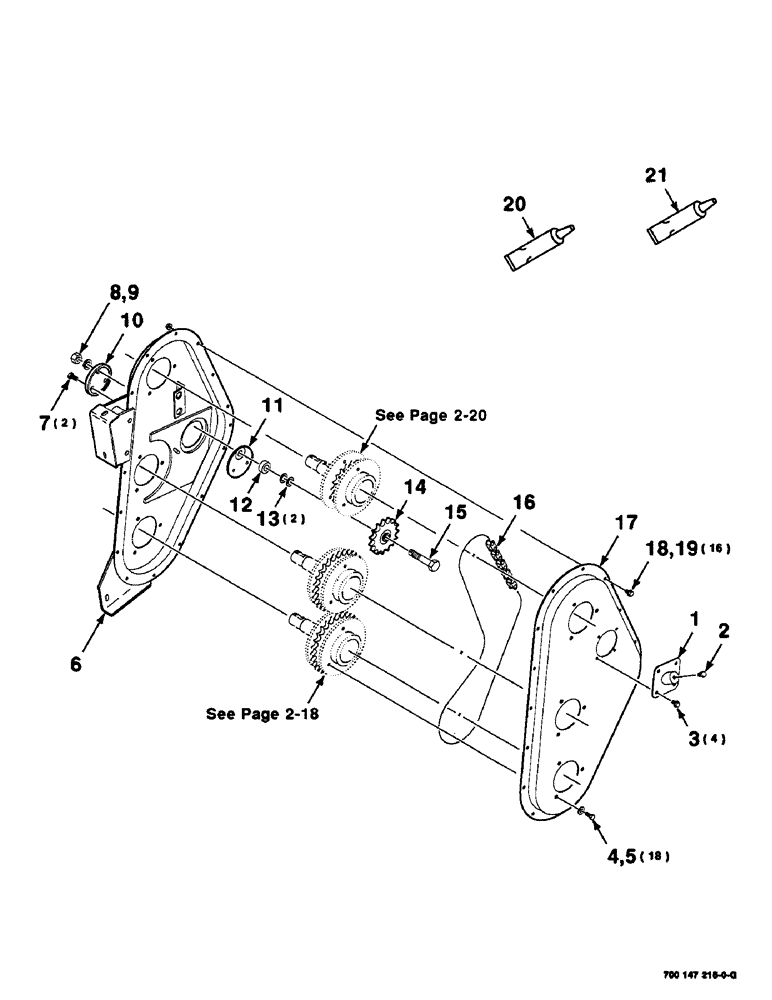

Запчасти Case IH SC414 (2-16) - CHAINBOX ASSEMBLY (09) - CHASSIS

1

700133239

PLATE

WA - cover

1шт.

2

152127H1

BREATHER,1/8"-27, Short

PLUG - vent

1шт.

3

280-5488

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 1/2"

5/16-18 X 1/2 HWHTCTS

4шт.

4

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

18шт.

5

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

18шт.

6

700136315

PLATE

WA - inner

1шт.

7

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

8

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

9

425-1010

NUT,5/8"-11, G5

1шт.

10

700110612

COVER

- cam

1шт.

11

700110613

CAM

1шт.

12

700110610

SPACER

1шт.

13

52233

BUSHING

5/8 X 14 GAUGE NRMB

2шт.

14

541857R92

SPROCKET,15T

- idler 15 tooth

1шт.

15

700110943

SCREW

5/8-11 X 3 CAP SCREW SPECIAL

1шт.

16

700707023

TRACK ASSY

CHAIN - roller

1шт.

17

700136320

PLATE

- outer

1шт.

18

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

16шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

16шт.

20

700707823

SEALANT

- 10.3 oz tube

1шт.

21

B505154

LUBRICANT

- gear

1шт.
