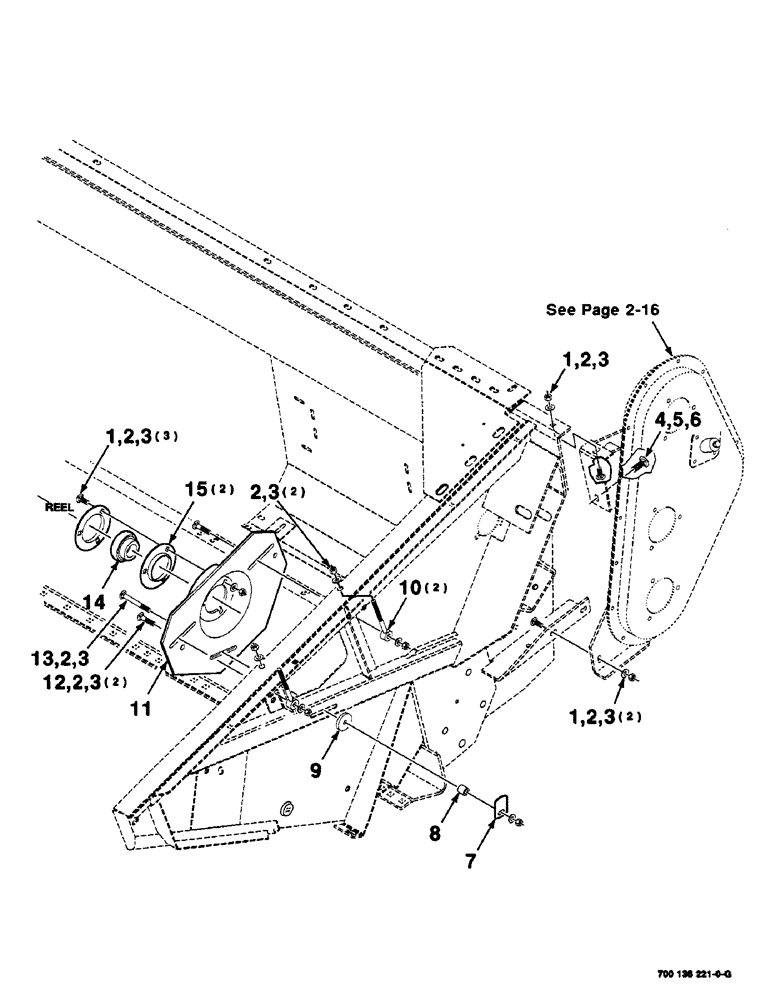

Запчасти Case IH SC414 (2-14) - REEL DRIVE ASSEMBLY (LEFT) (09) - CHASSIS

1

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

6шт.

2

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

11шт.

3

425-106

NUT,3/8"-16, Cl 5

11шт.

4

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 X 1-1/2 RHSNB

1шт.

5

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

1шт.

6

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

7

489898

BRACKET

PLATE

1шт.

8

6869382

SPACER

1шт.

9

6581052

WASHER

- special

1шт.

10

700110578

ROD

WA

2шт.

11

700110586

LARGE PLATE

PLATE WA - left

1шт.

12

433-628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

3/8-16 X 1-3/4 RHSNB

2шт.

13

433-656

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3 1/2", Gr 5

3/8-16 X 3-1/2 RHSNB

1шт.

14

50336

SHIELD,3.75 mm ID x 62 mm OD x 16, 48.41 mm

- spherical

1шт.

15

H747188

FLANGED BEARING,112.73 mm OD x 8.74 mm

FLANGE - bearing

2шт.
