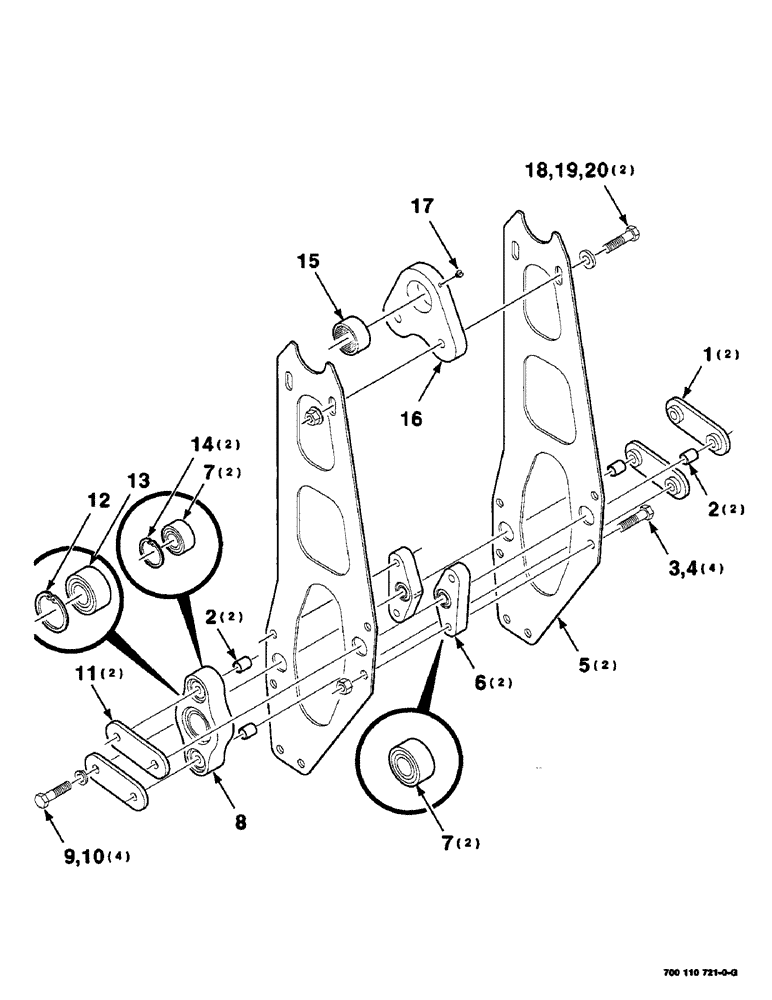

Запчасти Case IH SC414 (2-10) - SWAYBAR ASSEMBLY (09) - CHASSIS

1

6582621

LINK

WA

2шт.

2

6583140

BUSHING,12.73mm ID x 16.94mm OD x 19.84mm L

4шт.

3

700705454

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 8

1/2-20 X 1-3/4 FT C GR8

4шт.

4

329-118

NUT,1/2"-20, G8

4шт.

5

700110722

PLATE

- sickle

2шт.

6

700122898

BEARING ASSY,17mm ID

BEARING ASSEMBLY (includes item 7)

2шт.

7

7714629

BALL BEARING,17mm ID x 40mm OD x 20.64mm W

BEARING - cylindrical

4шт.

8

6582662

BEARING HOUSING

PLATE ASSEMBLY - bearing (includes items 7, 12, 13 and 14)

1шт.

9

114-410

BOLT,Hex, 1/2" - 20 x 2", Gr 5

4шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

11

700109713

LINK

ATTACHMENT

2шт.

12

740415

RING, SNAP

RING - retaining

1шт.

13

611921R92

BEARING, ROLLER, CYL,34.92mm ID x 72mm OD x 19mm W

- cylindrical

1шт.

14

100-21156

SNAP RING,1.562", Int, #156

Ring, Snap, 1.562", Int, #156

2шт.

15

700705429

NEEDLE BEARING,Needle, 31.75mm ID x 38.1mm OD x 31.75mm W

BEARING - needle

1шт.

16

700110724

HOUSING

- pivot, bearing

1шт.

17

700706202

PLUG

- zerk

1шт.

18

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

19

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

2шт.

20

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

2шт.
