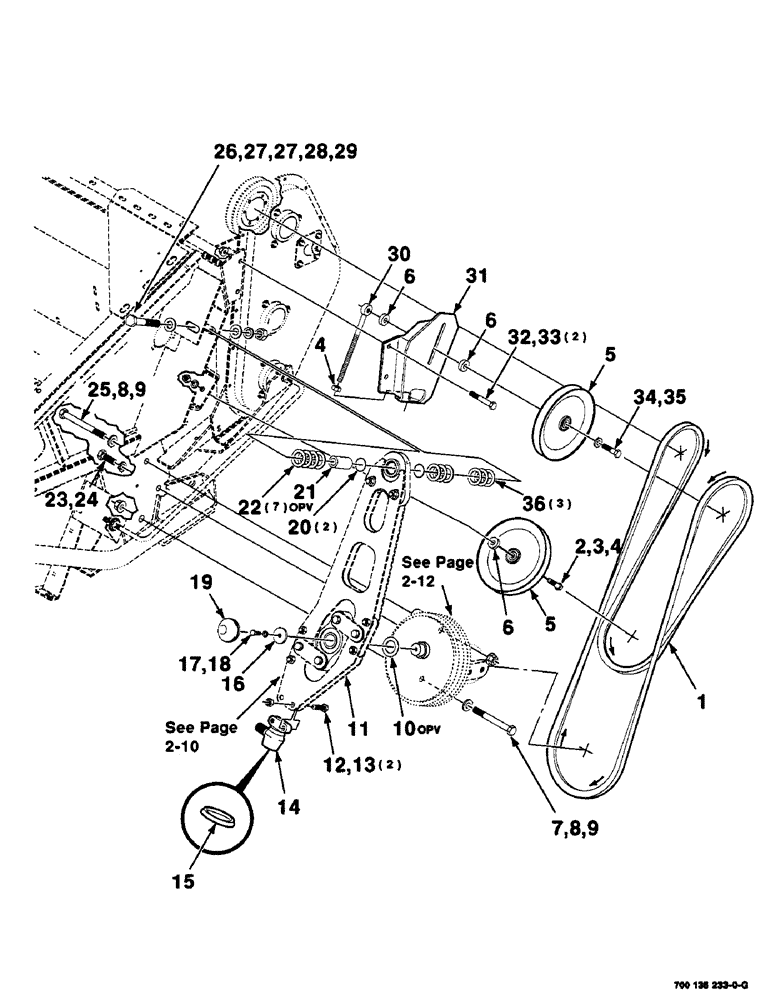

Запчасти Case IH SC414 (2-08) - SICKLE DRIVE ASSEMBLY (09) - CHASSIS

1

700705430

V-BELT,3860.80 mm L

1шт.

2

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

5

1710334

PULLEY

SHEAVE

2шт.

6

700100063

SPACER

3шт.

7

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

5/8-11 X 5-1/2 C

1шт.

8

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

2шт.

9

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

2шт.

10

195-2139

WASHER,36.52mm ID x 57.15mm OD x 2.03mm Thk

1-3/8 X 14 GAUGE NRMB

1шт.

11

700110721

DRIVE

SWAYBAR ASSEMBLY

1шт.

12

700705454

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 8

1/2-20 X 1-3/4 FTC GR8 NP

2шт.

13

425-118

NUT,1/2"-20, G5

1/2-20 H

2шт.

14

700110728

SOCKET

ASSEMBLY (includes item 15)

1шт.

15

700702253

SEAL

1шт.

16

6581052

WASHER

1шт.

17

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

18

492-11038

LOCK WASHER,3/8"

1шт.

19

700708708

CAP

- grease

1шт.

20

7030257

O-RING

2шт.

21

700110745

BUSHING,19.18mm ID x 32.09mm OD x 68.56mm L

1шт.

22

52324

BUSHING

1-1/4 X 10 GAUGE NRMB

7шт.

23

414-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

5/8-18 X 1-3/4 C

1шт.

24

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

5/8-11 X 6 C

1шт.

26

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

3/4-10 X 4-1/2 C

1шт.

27

705566

WASHER

3/4 HARDENED PLAIN WASHER

2шт.

28

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

29

425-1012

NUT,3/4"-10, G5

3/4-10 H

1шт.

30

700110746

SPECIAL BOLT,Draw

DRAWBOLT WA

1шт.

31

700136383

SUPPORT

WA - idler

1шт.

32

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1/2-13 X 3-1/4 C

2шт.

33

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

34

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1/2-13 X 2-1/2 C

1шт.

35

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

1шт.

36

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

1-1/4 X 14 GAUGE NRMB

3шт.
