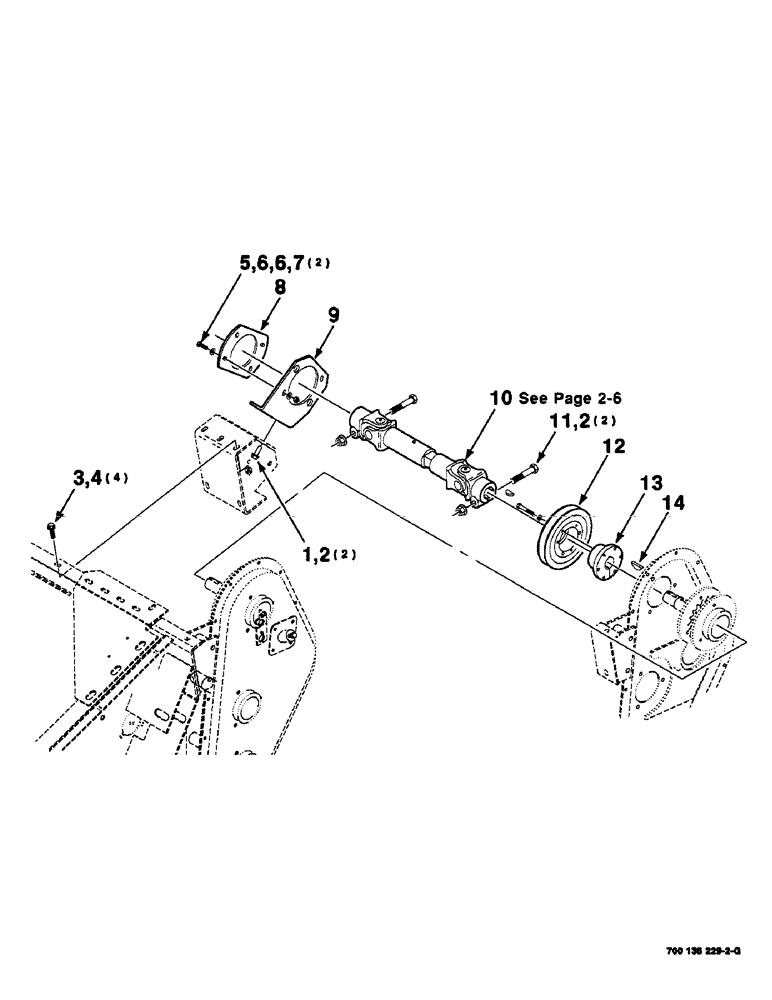

Запчасти Case IH SC414 (2-04) - MAIN DRIVE ASSEMBLY (SC414) (09) - CHASSIS

1

700710984

SCREW,Hex Flg, 1/2" x 1 1/4", G8 NC

1/2-13 X 1-1/4 HFS GR8

2шт.

2

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

4шт.

3

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

4шт.

4

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

4шт.

5

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

C Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

6

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

4шт.

7

425-105

NUT,5/16"-18, G5

2шт.

8

700136294

PLATE

- mounting

1шт.

9

700136284

SUPPORT

- motor

1шт.

10

700715723

UNIVERSAL JOINT

U-JOINT

1шт.

11

703736

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2-13 X 2-3/4 C

2шт.

12

700136321

SHEAVE

- sickle drive

1шт.

13

700711851

BUSHING

- taper

1шт.

14

126-36

WOODRUFF KEY,#23, 5/16" x 1 3/8"

1шт.
