(8-24) - HYDRAULIC CYLINDER ASSEMBLY - HEADER LIFT (SLAVE)(700712022 HYDR. CYLD. COMPLETE-3"BORE BY 8"STROKE)

Запчасти Case IH SC414 (8-24) - HYDRAULIC CYLINDER ASSEMBLY - HEADER LIFT (SLAVE)(700712022 HYDR. CYLD. COMPLETE-3"BORE BY 8"STROKE) (08) - HYDRAULICS

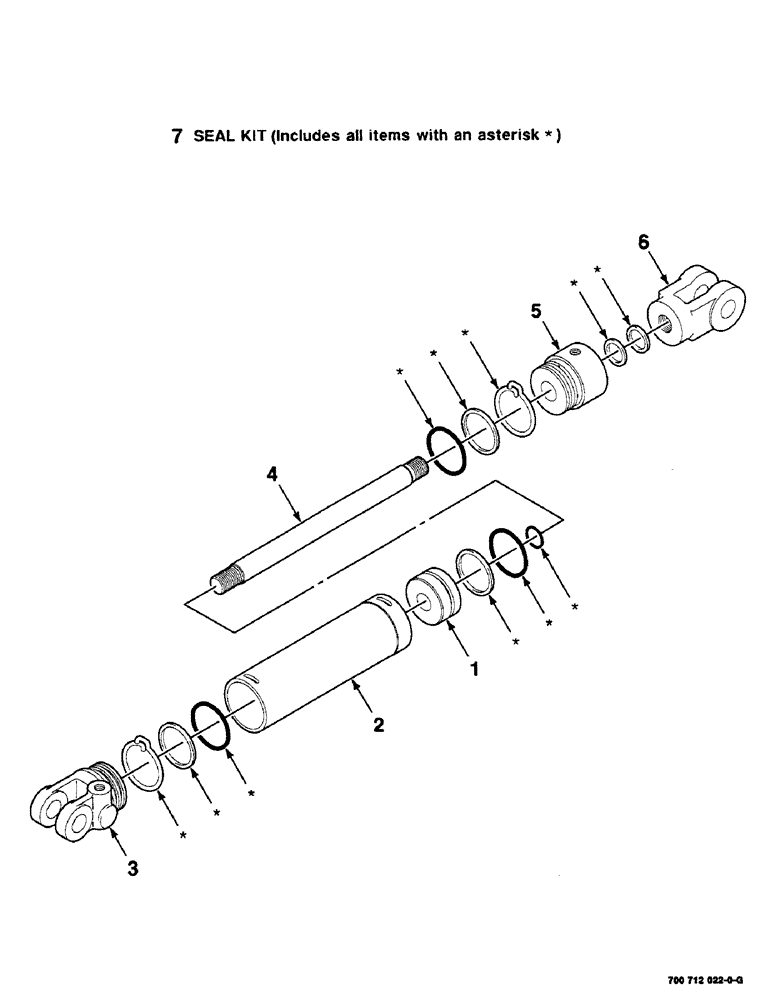

Схема запчастей Case IH SC414 - (8-24) - HYDRAULIC CYLINDER ASSEMBLY - HEADER LIFT (SLAVE)(700712022 HYDR. CYLD. COMPLETE-3"BORE BY 8"STROKE) (08) - HYDRAULICS
2
5
7
1
6
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700712022

CYLINDER

HYDRAULIC CYLINDER COMPLETE (3" bore by 8" stroke)

1шт.

1

H436684

JACK PISTON

PISTON - cylinder

1шт.

2

102690A1

TUBE

BARREL

1шт.

3

700700105

HEAD

- cylinder

1шт.

4

102692A1

ROD

- piston

1шт.

5

102686A1

GLAND

BEARING - cylinder rod

1шт.

6

50-2087T1

END

CLEVIS - rod end

1шт.

7

700710260

SEAL KIT

KIT

1шт.
