(8-22) - HYDRAULIC CYLINDER ASSEMBLY-HEADER LIFT(MASTER)(700712016 HYDR. CYLD COMPLETE-3-1/4"BORE BY 8"STROKE

Запчасти Case IH SC414 (8-22) - HYDRAULIC CYLINDER ASSEMBLY-HEADER LIFT(MASTER)(700712016 HYDR. CYLD COMPLETE-3-1/4"BORE BY 8"STROKE (08) - HYDRAULICS

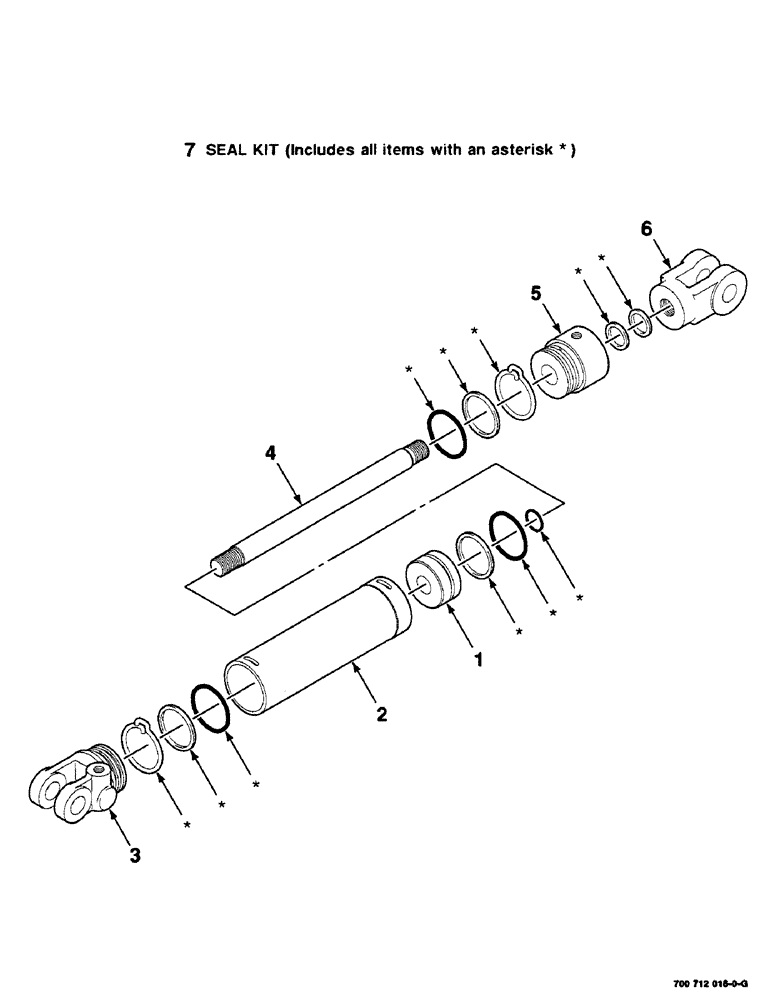

Схема запчастей Case IH SC414 - (8-22) - HYDRAULIC CYLINDER ASSEMBLY-HEADER LIFT(MASTER)(700712016 HYDR. CYLD COMPLETE-3-1/4"BORE BY 8"STROKE (08) - HYDRAULICS
6
3
5
2
1
4
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700712016

CYLINDER

HYDRAULIC CYLINDER COMPLETE (3-1/4" bore by 8" stroke)

1шт.

1

700710154

PISTON

- cylinder

1шт.

2

700712105

SLEEVE CYLINDER

BARREL

1шт.

3

700707662

HEAD

- cylinder

1шт.

4

700700100

ROD

- piston

1шт.

5

700712106

LIFT CYLINDER

BEARING - cylinder rod

1шт.

6

50-2079T1

END

CLEVIS - rod end

1шт.

7

700710155

SEAL PACKAGE

SEAL KIT

1шт.
