(9-12) - CROP DIVIDER KIT, (HK60918 CROP DIVIDER KIT COMPLETE - TO BE ORDERED THRU WHOLEGOODS ONLY)

Запчасти Case IH SC412 (9-12) - CROP DIVIDER KIT, (HK60918 CROP DIVIDER KIT COMPLETE - TO BE ORDERED THRU WHOLEGOODS ONLY) (09) - CHASSIS

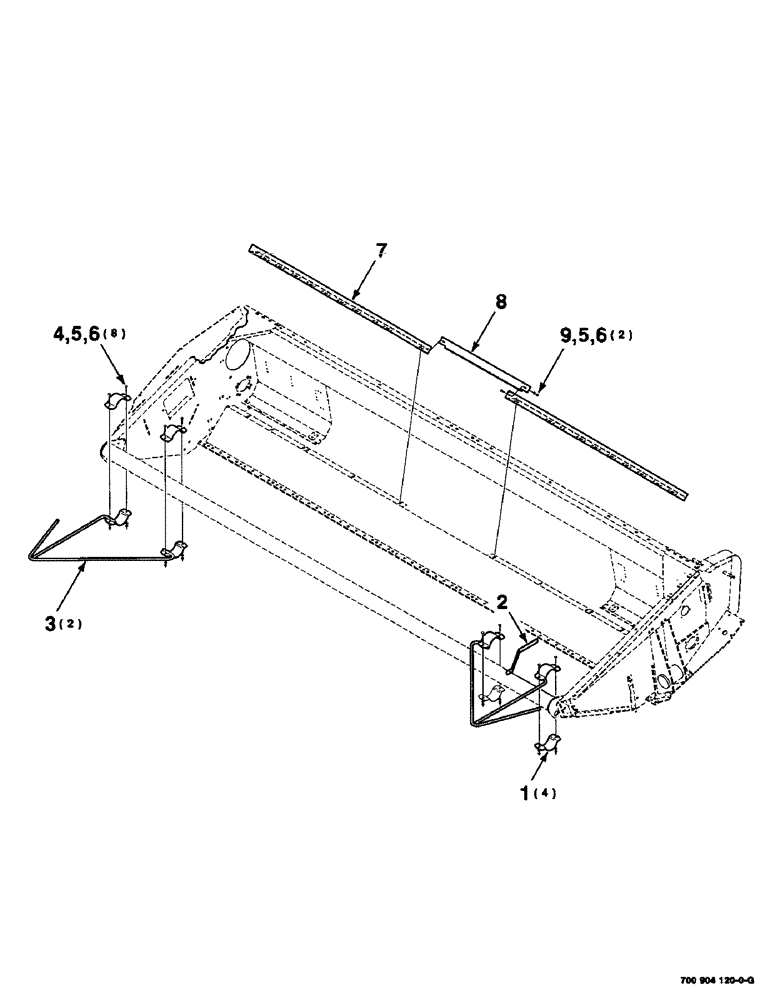

Схема запчастей Case IH SC412 - (9-12) - CROP DIVIDER KIT, (HK60918 CROP DIVIDER KIT COMPLETE - TO BE ORDERED THRU WHOLEGOODS ONLY) (09) - CHASSIS
6
7
8
5
9
6
2
5
3
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

HK60918

CROP DIVIDER KIT

1шт.

1

700111549

CLAMP

- half

4шт.

2

6830707

STRAP

- DEFLECTOR

1шт.

3

700111547

ROD

WA - divider

2шт.

4

111-274

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 3/4", G5

5/16-18 X 1-3/4 RHSNB

8шт.

5

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

10шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

10шт.

7

700134892

STRIPPER

1шт.

8

700111550

STRIPPER

- center

1шт.

9

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.
