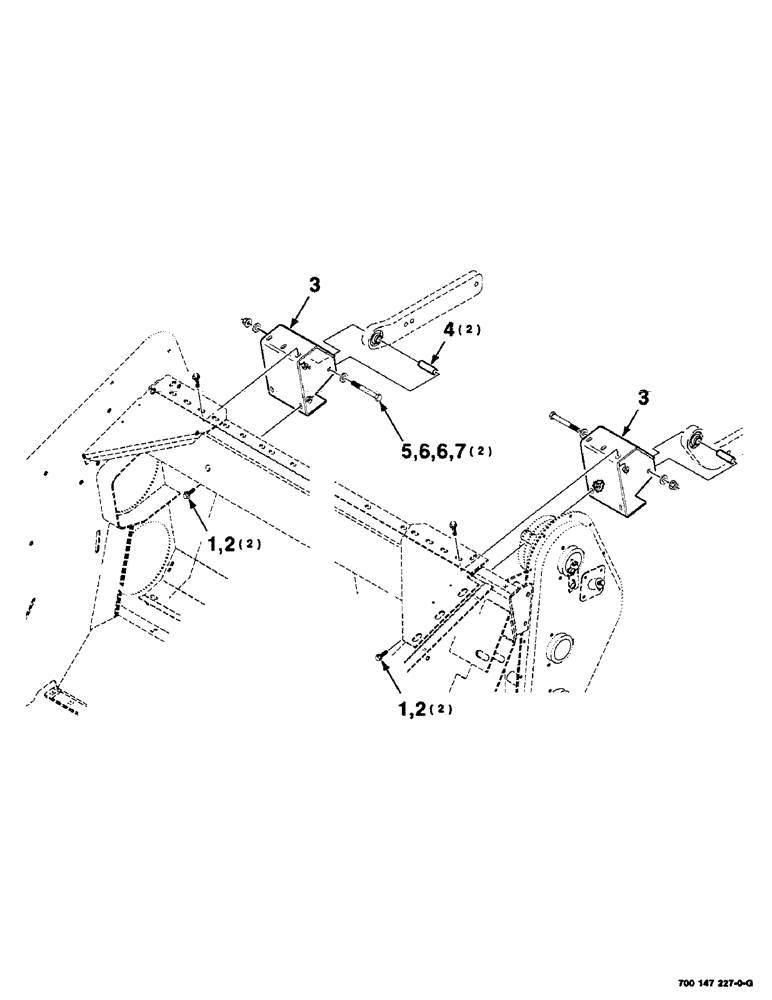

Запчасти Case IH SC412 (7-46) - MOUNTING ASSEMBLY (09) - CHASSIS

1

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

4шт.

2

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

4шт.

3

700147227

CHANNEL

WA - mounting

2шт.

4

700115151

SPACER

2шт.

5

326-864

BOLT,Hex, 1/2" - 13 x 4", Gr 8

2шт.

6

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

4шт.

7

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

2шт.
