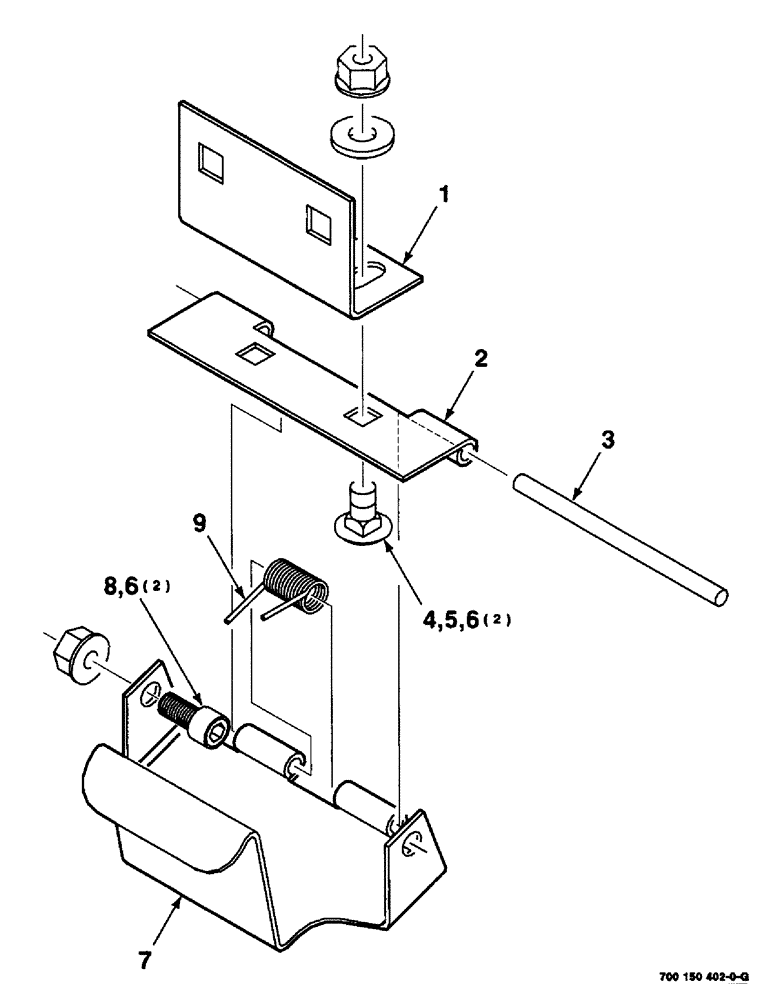

Запчасти Case IH SC412 (7-36) - LATCH ASSEMBLY (09) - CHASSIS

1

700150405

ANGLE

- latch

1шт.

2

700150404

MOUNTING PARTS

MOUNT - handle

1шт.

3

700114528

PIN

- hinge

1шт.

4

412-48

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1/2", Gr 2

1/4-20 X 1/2 RHSNB

2шт.

5

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

2шт.

6

1703354

NUT

1/4-20 HFTLN GR/G

4шт.

7

700150403

HANDLE

1шт.

8

61-3258

HEX SOC SCREW,1/4"-20 x 1/2"

1/4-20 X 1/2 HSHCS

2шт.

9

700711020

SPRING

- torsion

1шт.
