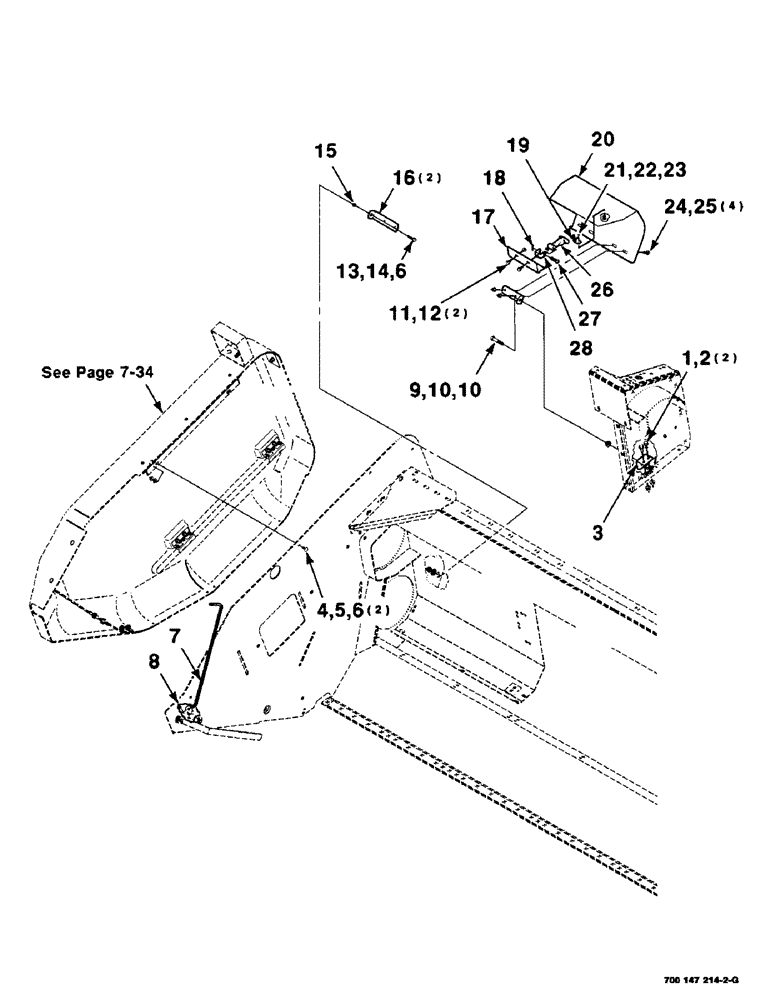

Запчасти Case IH SC412 (7-26) - SHIELDS AND MOUNTING ASSEMBLIES - RIGHT (SC412) (09) - CHASSIS

1

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

2шт.

2

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

2шт.

3

700114779

BRACKET

MOUNTING - pivot

1шт.

4

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

5

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

3шт.

7

700134880

ROD

- hanger, left

1шт.

8

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

9

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1/2-13 X 2-1/2 C

1шт.

10

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

11

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

2шт.

13

163-41

SCREW,Sl Hex Wshr Hd, 5/16" - 18 x 1 1/4"

5/16-18 X 1-1/4 HWHMS

1шт.

14

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

1шт.

15

6124259

BUSHING

1шт.

16

700110705

SUPPORT

- shield

2шт.

17

700136347

SUPPORT

- shield (SC412)

1шт.

18

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.

19

8722910

BRACKET

1шт.

20

700136329

SHIELD

RIGHT (SC412)

1шт.

21

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

#10-24 X 1/2 CRPHMS GR60M

1шт.

22

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

23

225-14110

NUT,#10-24

1шт.

24

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

25

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

4шт.

26

494307C1

LATCH

HOOK - rubber

1шт.

27

141-13

CLEVIS PIN,1/4" x 1.594"

1/4 X 1-1/2 CLEVIS PIN

1шт.

28

776674

SUPPORT

BRACKET - anchor

1шт.
