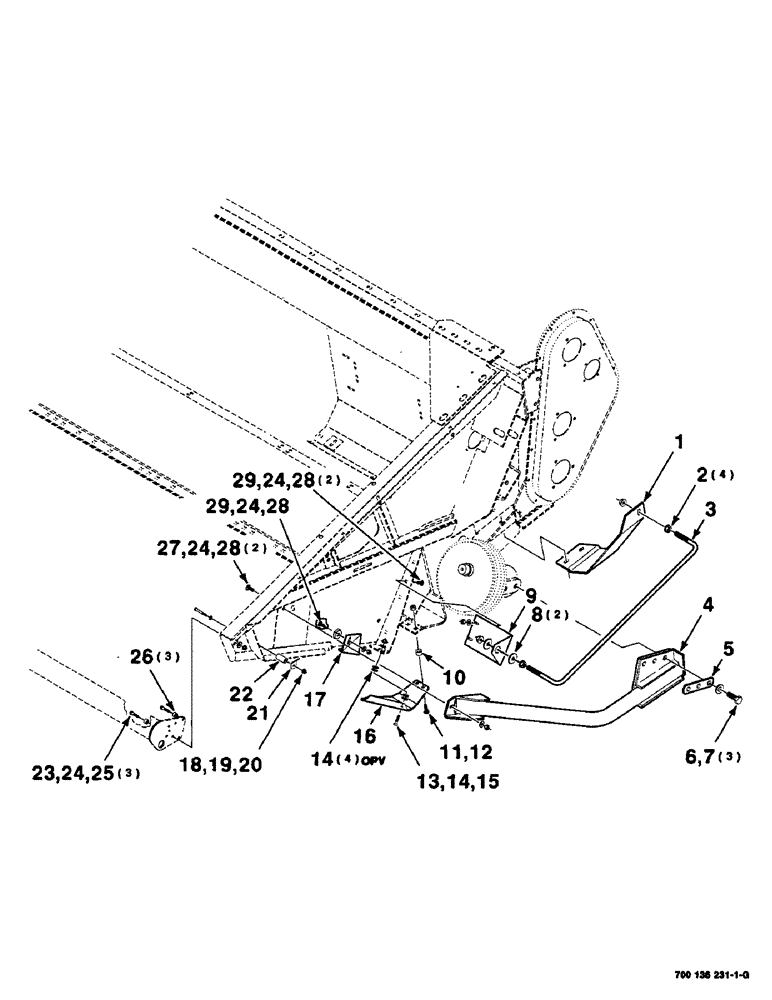

Запчасти Case IH SC412 (7-20) - DIVIDERS, LEANBAR AND MOUNTING ASSEMBLIES (LEFT) (09) - CHASSIS

1

700136269

SUPPORT

- rod, left

1шт.

2

329-288

FLANGE NUT,Flg, 1/2"-13, G8

4шт.

3

700134721

GUIDE

- shield, right

1шт.

4

700150969

PIPE

WA - guard

1шт.

5

700150972

STRAP

1шт.

6

414-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

5/8-18 X 1-3/4 C

3шт.

7

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

3шт.

8

6223374

WASHER

2шт.

9

700136282

SUPPORT

- rod, left

1шт.

10

700110561

SPACER

- left

1шт.

11

433-724

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

7/16-14 X 1-1/2 RHSNB

1шт.

12

425-107

NUT,7/16"-14, G5

1шт.

13

118-140

PLOW BOLT,3/8"-16 x 1 1/8", G5

3/8-16 X 1-1/4 PLOW BOLT

1шт.

14

496-81010

WASHER

3/8 HARDENED WIDE PLAIN WASHER

5шт.

15

231-5146

FLANGE NUT,3/8"-16

1шт.

16

700110225

DIVIDER POINT

DIVIDER - left

1шт.

17

700136288

SHOE

- divider, left

1шт.

18

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

19

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

1шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

1шт.

21

700134873

MOUNTING PARTS

MOUNT - rod

1шт.

22

6828107

TUBE,10.57 mm ID, 19.05 mm OD, 40 mm Length

1шт.

23

700711084

BOLT

3/8-16 X 1-1/2 HFS GR8

3шт.

24

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

8шт.

25

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

3шт.

26

6605752

SPACER

3шт.

27

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

2шт.

28

425-106

NUT,3/8"-16, Cl 5

5шт.

29

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3шт.
