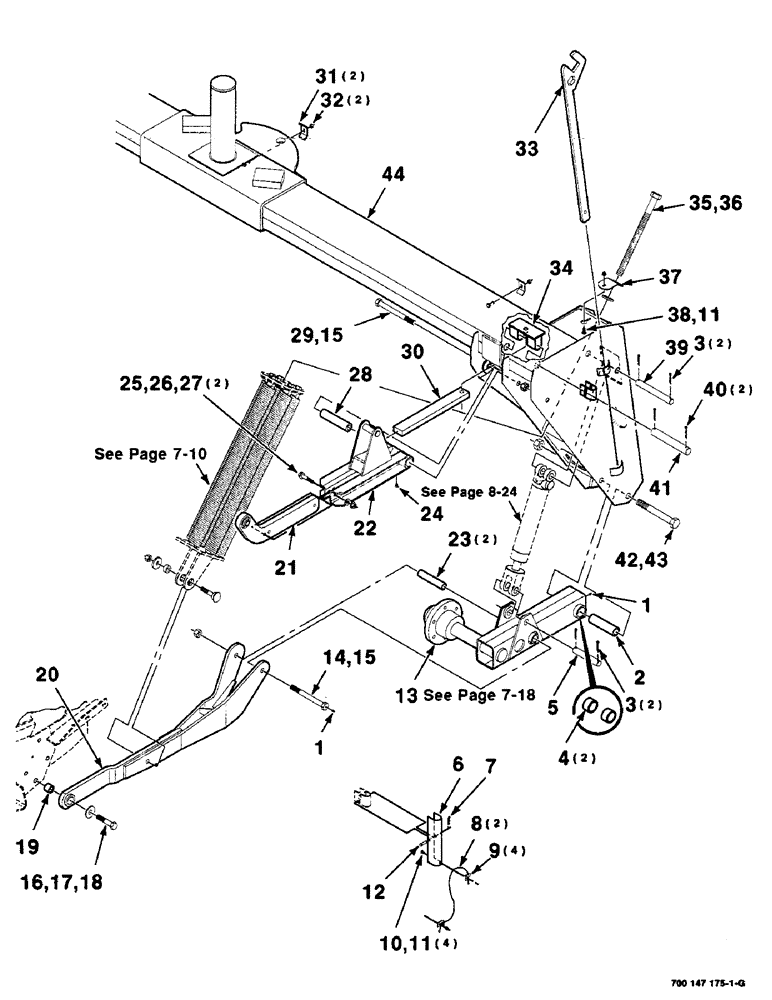

Запчасти Case IH SC412 (7-06) - FLOTATION ASSEMBLY - LEFT (SC412) (09) - CHASSIS

1

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

2

700115166

SLEEVE,25.96mm ID x 38.1mm OD x 138mm L

1шт.

3

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

4шт.

4

852459

BRONZE BUSHING

BUSHING - bronze

2шт.

5

700115185

PIN

- cylinder, lower

1шт.

6

700115186

STOP

- safety

1шт.

7

T54573

PIN

.120 HAIRPIN COTTER

1шт.

8

700706805

CABLE

2шт.

9

700114675

ANCHOR

- cable

4шт.

10

706176

SCREW

5/16-18 X 3/4 CRTHMS

4шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

5шт.

12

63644

CLEVIS PIN

3/8 X 2-1/8 CLEVIS PIN

1шт.

13

700118756

STRUT

WA - left (includes item 4)

1шт.

14

700115167

BOLT

- special

1шт.

15

230-41112

LOCK NUT,3/4"-10, GA

3/4-10 HTLN GR/B

2шт.

16

326-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

1шт.

17

495-21081

WASHER,3/4"

1шт.

18

232-53112

FLANGE NUT,Flg, 3/4"-10

3/4-10 HFTLN GR/G

1шт.

19

700115152

BUSHING

- arm, front

1шт.

20

700150420

ARM

WA - left

1шт.

21

700150415

ARM

WA - upper, left

1шт.

22

700147220

ARM

WA - upper, rear

1шт.

23

700115164

BUSHING,19.84mm ID x 28.58mm OD x 140mm L

2шт.

24

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

1шт.

25

700711133

BOLT

1/2-13 X 2-3/4 HFS GR8

2шт.

26

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

2шт.

27

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

2шт.

28

700115165

BUSHING

1шт.

29

414-12128

BOLT,Hex, 3/4" - 16 x 8", Gr 5

3/4-10 X 8 B

1шт.

30

700716882

SPRING

- leaf

1шт.

31

6246995

CLAMP

- line

2шт.

32

231-4116

NUT,3/8"-16, GB

3/8-16 HTLN GR/B

2шт.

33

700136302

SPECIAL WRENCH

WRENCH - header reverse

1шт.

34

700150426

MOUNTING PARTS

MTG WA - spring

1шт.

35

700717862

BOLT

1-8 X 14 B

1шт.

36

705574

WASHER,1 1/8" x 2" x .156", HDN

1шт.

37

700150400

RETAINER

1шт.

38

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5

1шт.

39

700115184

PIN

- cylinder, upper

1шт.

40

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

2шт.

41

6670020

PIN

- spring, anchor

1шт.

42

413-16128

BOLT,Hex, 1" - 8 x 8", Gr 5

1/8 X 8 B

1шт.

43

425-1016

NUT,1"-8, G5

1шт.

44

700147171

FRAME

MAINFRAME WA (SC412)

1шт.
