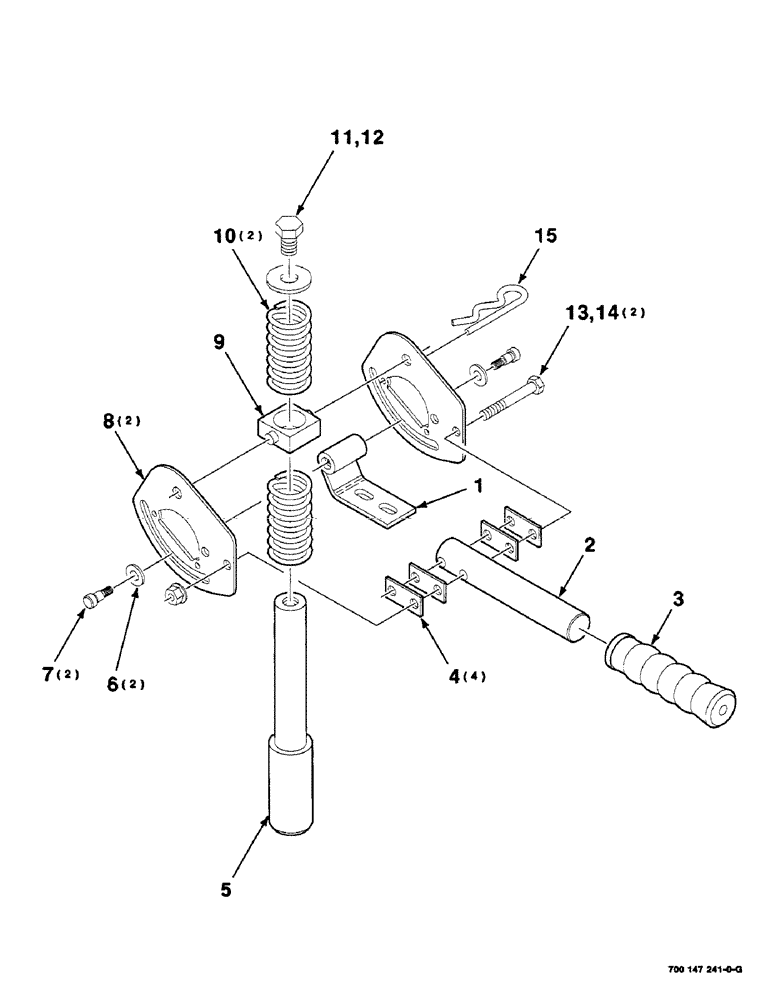

Запчасти Case IH SC412 (7-04) - LATCH ASSEMBLY - ROADING (09) - CHASSIS

1

700147271

MOUNTING PARTS

MOUNT WA - roading latch

1шт.

2

700147288

HANDLE

- roading latch

1шт.

3

27342

GRIP

HANDLE GRIP

1шт.

4

700147279

SHIM

- roading latch

4шт.

5

700147270

PIN

- roading latch

1шт.

6

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

7

773820

BOLT,Shoulder, 1/4" - 20 x 5/16"

5/16 HSHSS (1/4-20 thd)

2шт.

8

700147268

CAM

- roading pin

2шт.

9

700147269

TOW BAR

TRUNNION - roading latch

1шт.

10

700709793

SPRING

- compression

2шт.

11

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

1/2-13 X 3/4 C

1шт.

12

700711557

WASHER

1/2 HARDENED WIDE PLAIN WASHER

1шт.

13

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16-18 X 2-1/4 C

2шт.

14

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

2шт.

15

062455

PIN, SPLIT (COTTER)

.178 WIRE HAIRPIN COTTER

1шт.
