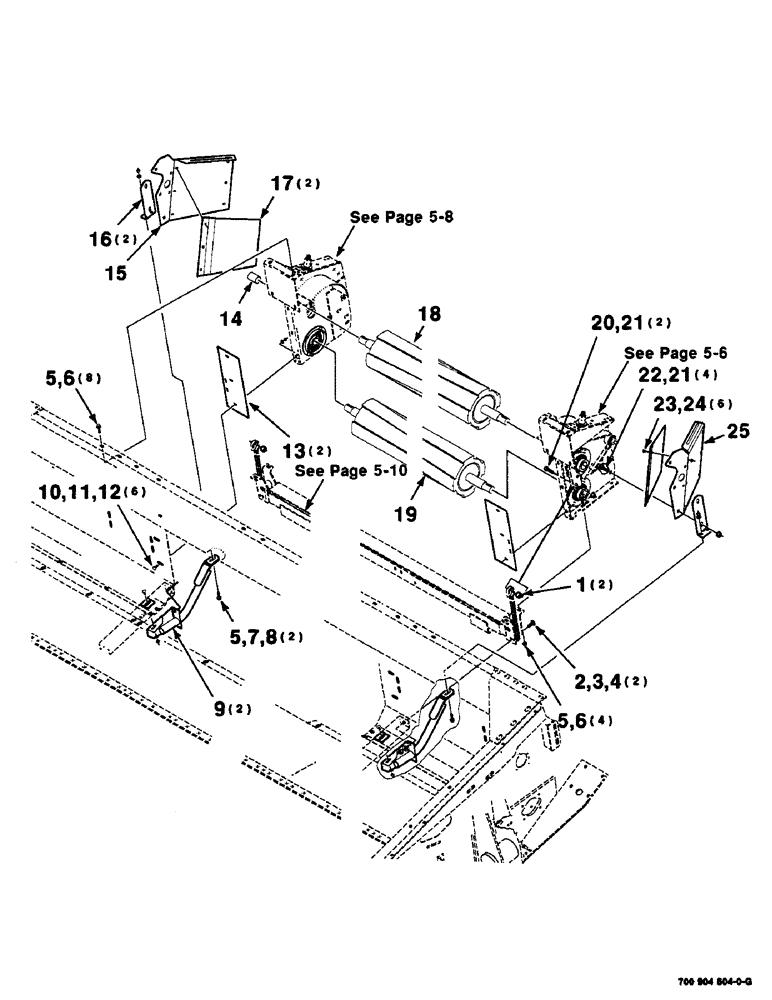

Запчасти Case IH SC412 (5-04) - HAY CONDITIONER ASSEMBLY (TICOR) (09) - CHASSIS

1

428938

SPACER

2шт.

2

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

2шт.

3

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

2шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

5

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

14шт.

6

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

12шт.

7

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

8

425-106

NUT,3/8"-16, Cl 5

2шт.

9

700121443

SUPPORT

WA

2шт.

10

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5

6шт.

11

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

6шт.

12

425-105

NUT,5/16"-18, G5

6шт.

13

700110186

STEEL PLATE

SHIM

2шт.

14

700713521

COVER

1шт.

15

700115156

SUPPORT

- forming shield, right

1шт.

16

700115292

BACK-UP RING

REINFORCEMENT

2шт.

17

700109693

SHIELD

- shingle

2шт.

18

700712169

ROLL

- Ticor, LH spiral

1шт.

19

700712170

ROLL

- Ticor, RH spiral

1шт.

20

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

21

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

6шт.

22

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 X 1-1/2 RHSNB

4шт.

23

412-48

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1/2", Gr 2

1/4-20 X 1/2 RHSNB

6шт.

24

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

25

700115155

SUPPORT

- forming shield, left

1шт.
