(2-34) - U-JOINT ASSEMBLY (LOWER - 12 FOOT), (700717387 U-JOINT ASSEMBLY COMPLETE)

Запчасти Case IH SC412 (2-34) - U-JOINT ASSEMBLY (LOWER - 12 FOOT), (700717387 U-JOINT ASSEMBLY COMPLETE) (09) - CHASSIS

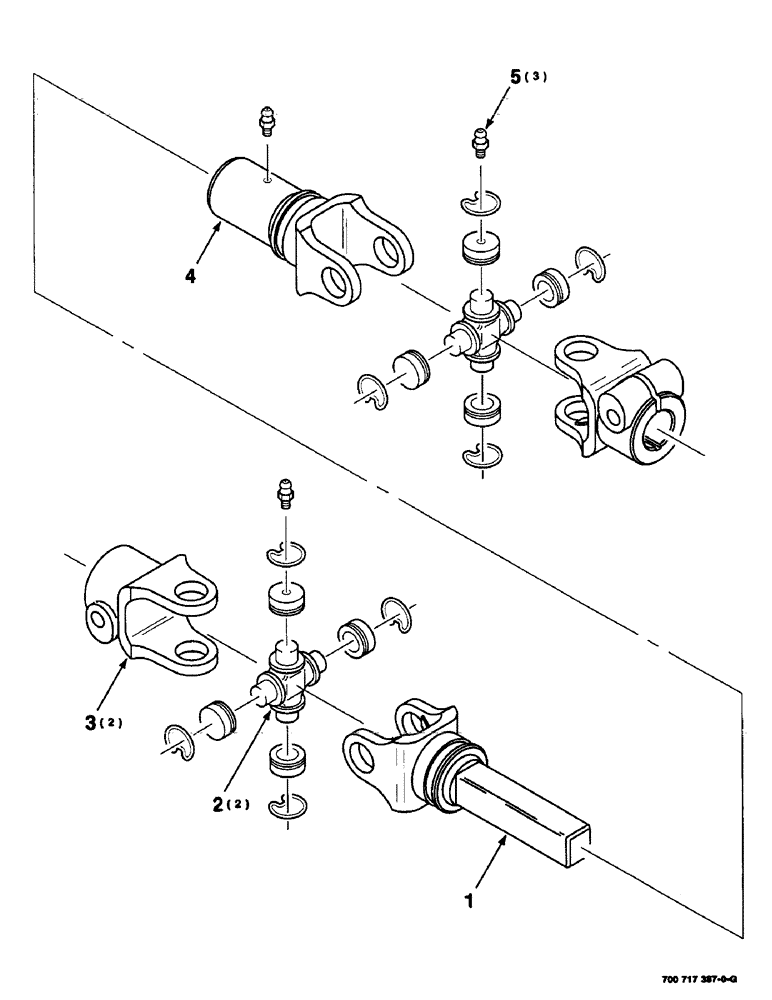

Схема запчастей Case IH SC412 - (2-34) - U-JOINT ASSEMBLY (LOWER - 12 FOOT), (700717387 U-JOINT ASSEMBLY COMPLETE) (09) - CHASSIS
2
4
3
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700717387

YOKE

U-JOINT ASSEMBLY COMPLETE

1шт.

1

700718305

YOKE

AND SHAFT

1шт.

2

700711843

FLEXIBLE JOINT

CROSS AND BEARING KIT (includes item 5)

2шт.

3

757716

CLAMP

YOKE

2шт.

4

700708949

FORK

SLIP YOKE

1шт.

5

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

3шт.
