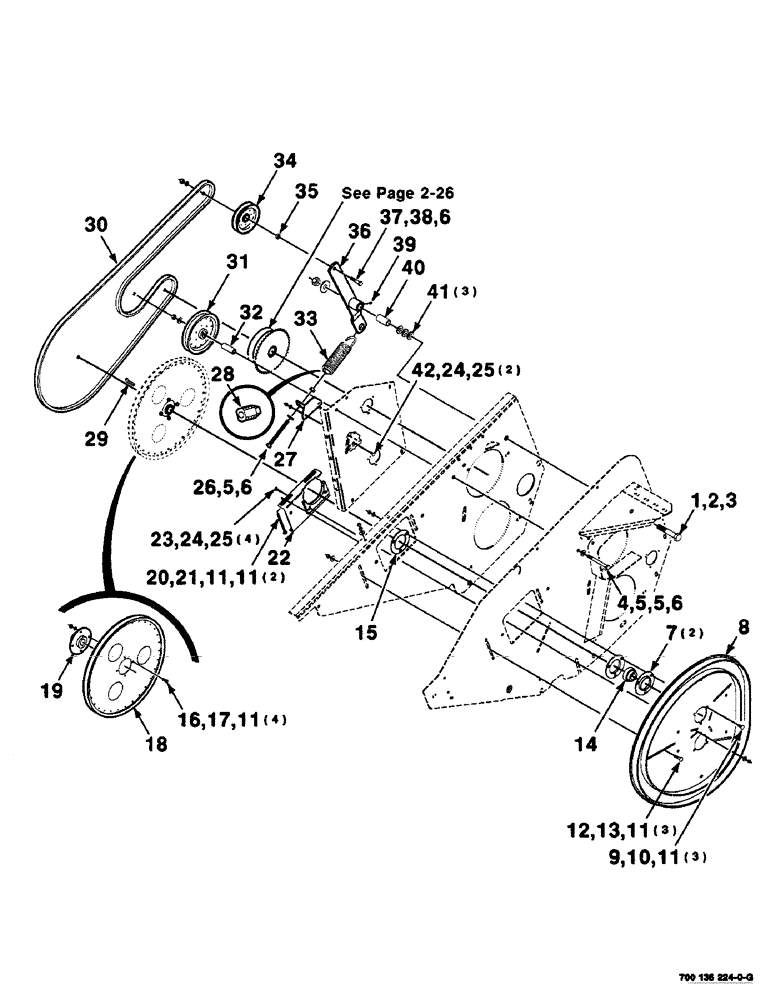

Запчасти Case IH SC412 (2-22) - REEL DRIVE ASSEMBLY (RIGHT) (09) - CHASSIS

1

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

3/4-10 X 4 C

1шт.

2

495-21081

WASHER,3/4"

1шт.

3

425-1012

NUT,3/4"-10, G5

3/4-10 H

1шт.

4

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1/2-13 X 5 C

1шт.

5

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

3шт.

6

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

7

617863R1

FLANGED BEARING

TTE - bearing

2шт.

8

700120804

ECCENTRIC

TRACK WA - cam

1шт.

9

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

3шт.

10

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

3шт.

11

425-106

NUT,3/8"-16, Cl 5

14шт.

12

111-361

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/2", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/2", G5

3шт.

13

496-81010

WASHER

3/8 HARDENED WIDE PLAIN WASHER

3шт.

14

700708091

SPHERICAL BEARING,34.93 mm ID x 72 mm OD x 38.89 mm

BEARING - spherical

1шт.

15

700117899

SHIM

1шт.

16

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

17

492-11038

LOCK WASHER,3/8"

4шт.

18

6114235

PULLEY

SHEAVE

1шт.

19

1660901

HUB

WA

1шт.

20

700706612

SCREW

3/8-16 X 4-1/2 FT RHSNB

2шт.

21

495-21044

WASHER,3/8"

2шт.

22

700136292

SUPPORT

WA - cam

1шт.

23

434-524

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/2", G5

5/16-18 X 1-1/2 RHSNB

4шт.

24

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

6шт.

25

425-105

NUT,5/16"-18, G5

6шт.

26

113-469

BOLT,Hex, 1/2" - 13 x 5", Gr 5, Full Thd

1шт.

27

700110649

PLATE

WA - mounting

1шт.

28

6189989

PLUG

- spring

1шт.

29

Q1497

KEY,Gib, 3/8" Sq x 2"

3/8 X 2 GIB KEY

1шт.

30

857219

V-BELT,0.88" W x 132.20" L

1шт.

31

54510

FRONT IDLER

SHEAVE

1шт.

32

700110572

SPACER

1шт.

33

6189971

SPRING

ASSEMBLY (includes item 28)

1шт.

34

53553

SHAFT

IDLER

1шт.

35

383976

BUSHING

1шт.

36

700136338

STRAP

WA - pivot

1шт.

37

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1шт.

38

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

39

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

40

700109663

BUSHING

- idler arm

1шт.

41

705566

WASHER

3/4 HARDENED PLAIN WASHER

3шт.

42

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.
