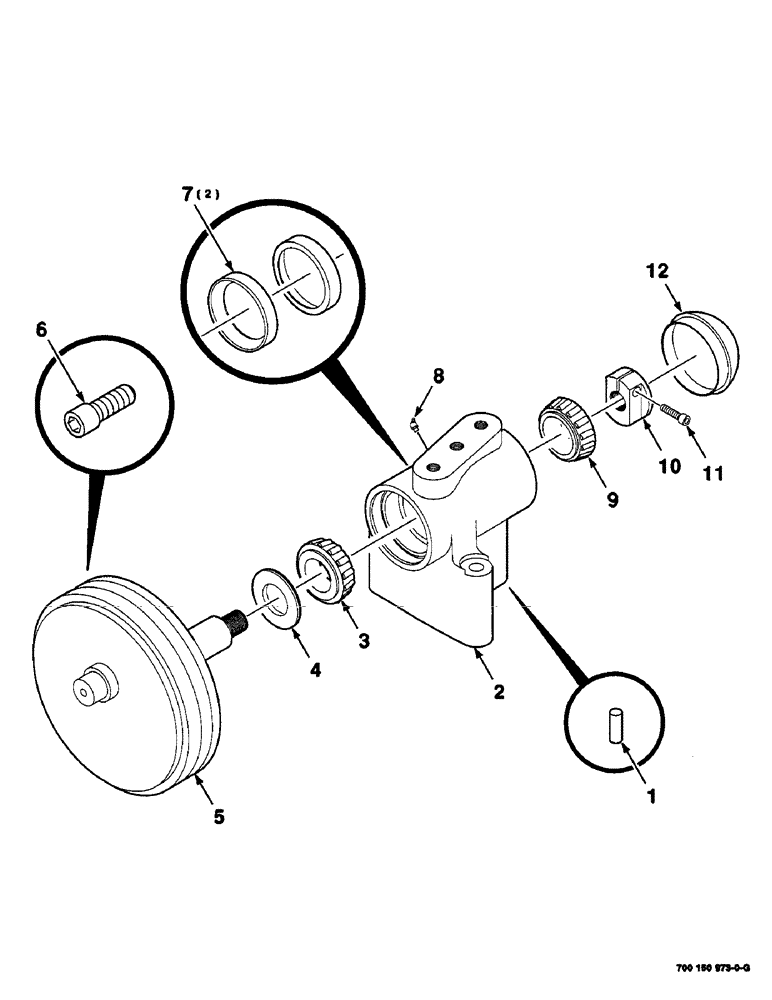

Запчасти Case IH SC412 (2-12) - CRANK ASSEMBLY (09) - CHASSIS

1

20154R1

DOWEL,5/16" x 7/8"

5/16 X 7/8 DOWEL PIN

1шт.

2

700150974

HOUSING

ASSEMBLY (includes items 1 and 7)

1шт.

3

298194R91

ROLLER BEARING,44.45mm ID x 29.37mm W

BEARING - cone

1шт.

4

8044083

SEAL

- external

1шт.

5

700110739

CRANK

ASSEMBLY (includes item 6)

1шт.

6

83-616

SET SCREW,Hex Soc, 3/8"-16 x 1"

3/8-16 X 1 CPHSSS

1шт.

7

170254R1

BEARING, CUP

CUP - bearing

2шт.

8

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1/4-28 X 45 DEGREE ZERK

1шт.

9

912735R91

ROLLER BEARING,1.6255" ID x 1.1563"

CONE - bearing

1шт.

10

700110743

NUT

NUT - clamp

1шт.

11

61-33120

HEX SOC SCREW,5/16"-18 x 1 1/4"

5/16-18 X 1-1/4 HSHCS SPL

1шт.

12

700705444

DUST CAP

CAP - grease

1шт.
