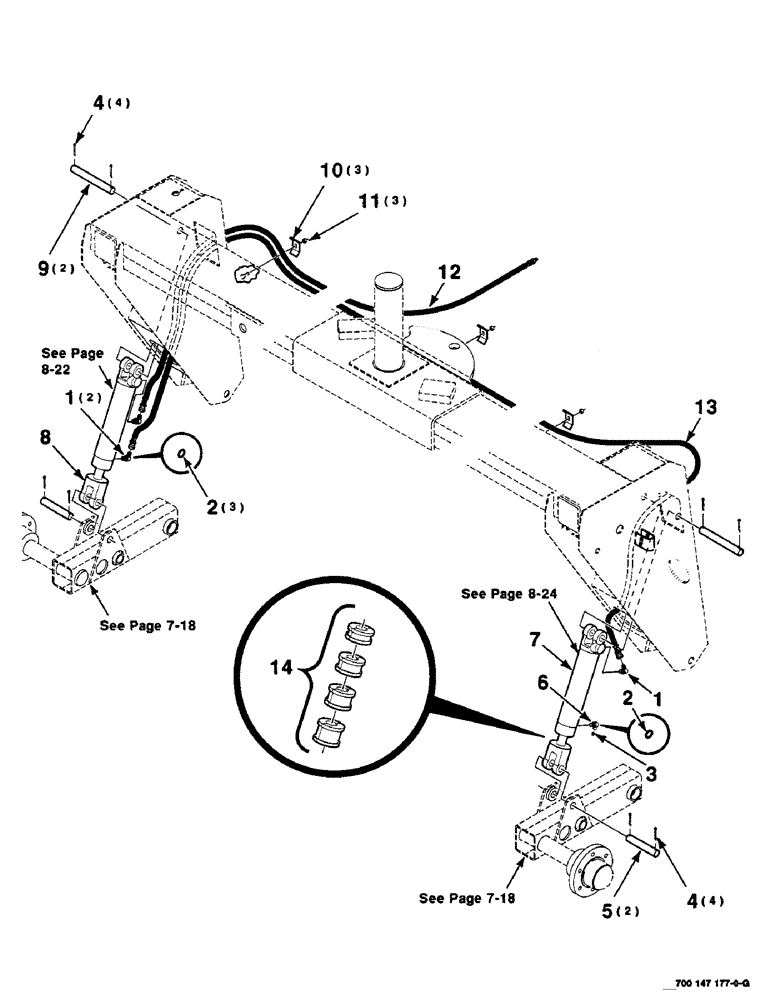

Запчасти Case IH SC412 (8-20) - HYDRAULIC HEADER LIFT ASSEMBLY (08) - HYDRAULICS

1

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

(Includes item 2) 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

3шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

4шт.

3

700704639

PLUG

- vent

1шт.

4

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

8шт.

5

700115185

PIN

- cylinder, lower

2шт.

6

218-5453

ELBOW,90 Degree, 3/4"-16 ORB x 3/8" NPT Fem

ADAPTER - 90 degrees (includes item 2)

1шт.

7

700712022

CYLINDER

- hydraulic

1шт.

8

700712016

CYLINDER

- hydraulic

1шт.

9

700115184

PIN

- cylinder, upper

2шт.

10

6246995

CLAMP

- line

3шт.

11

231-4116

NUT,3/8"-16, GB

3/8-16 HTLN GR/B

3шт.

12

700718024

HOSE

- hydraulic (SC412)

1шт.

700706825

HOSE

- hydraulic (SC414)

1шт.

13

8843823

HOSE ASSY.

HOSE - hydraulic (SC412)

1шт.

700704636

HOSE

- hydraulic (SC414)

1шт.

14

7737869

COLLAR

KIT - depth control

1шт.
