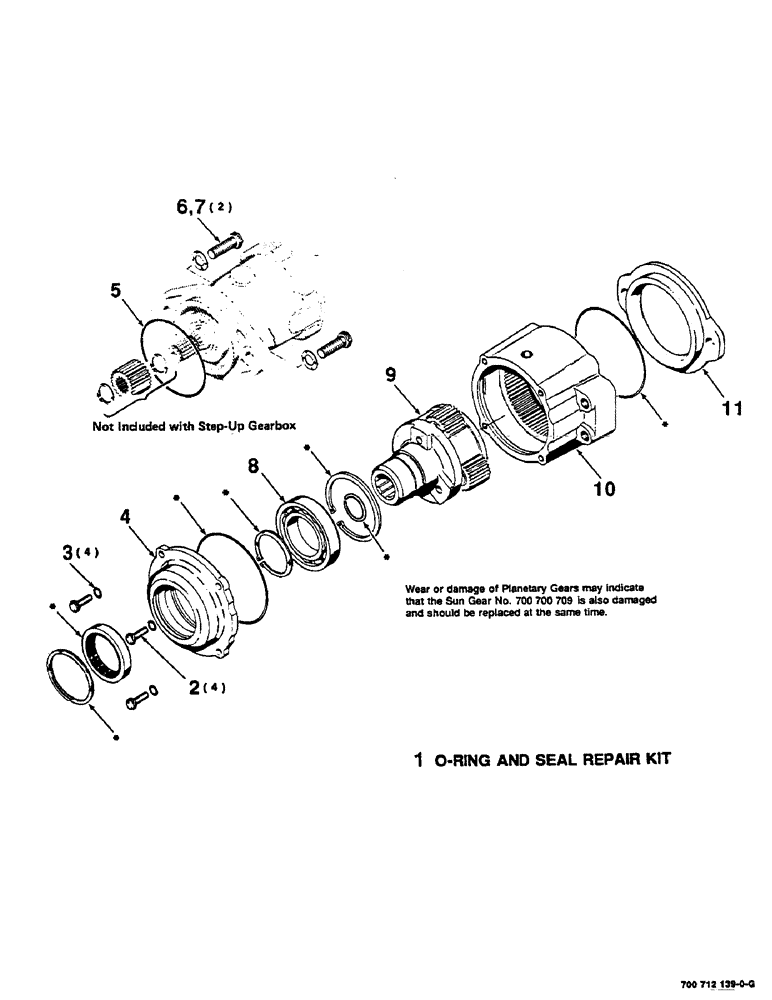

Запчасти Case IH SC412 (8-12) - GEARBOX STEP-UP ASSEMBLY (1000 RPM PUMP), (700712139 GEARBOX ASSEMBLY COMPLETE) (08) - HYDRAULICS

700712139

GEARBOX ASSY

GEARBOX ASSEMBLY COMPLETE (1000 RPM)

1шт.

700712139R

REMAN-GEARBOX

Remanufactured Gearbox

1шт.

700712139C

CORE-GEARBOX

Return Number, Gearbox

1шт.

1

1260903C1

SEAL KIT

O-RING AND SEAL REPAIR KIT, includes items in art marked with asterisk

1шт.

2

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

C Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

3

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

WASHER, LOCK, Ext Tooth, 5/16"

4шт.

4

T55322

LARGE PLATE

FRONT PLATE

1шт.

5

238-5155

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

1шт.

6

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

7

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

2шт.

8

S94692

BALL BEARING,55 mm ID x 90 mm OD x 18 mm

BEARING

1шт.

9

700712142

CARRIER

PLANETARY CARRIER ASSEMBLY

1шт.

10

700700713

HOUSING

1шт.

11

T55323

PLATE

ADAPTER PLATE

1шт.
