Запчасти Case IH SC412 (8-08) - GEARBOX STEP-UP ASSEMBLY (540 RPM PUMP), (700712138 GEARBOX ASSEMBLY COMPLETE) (08) - HYDRAULICS

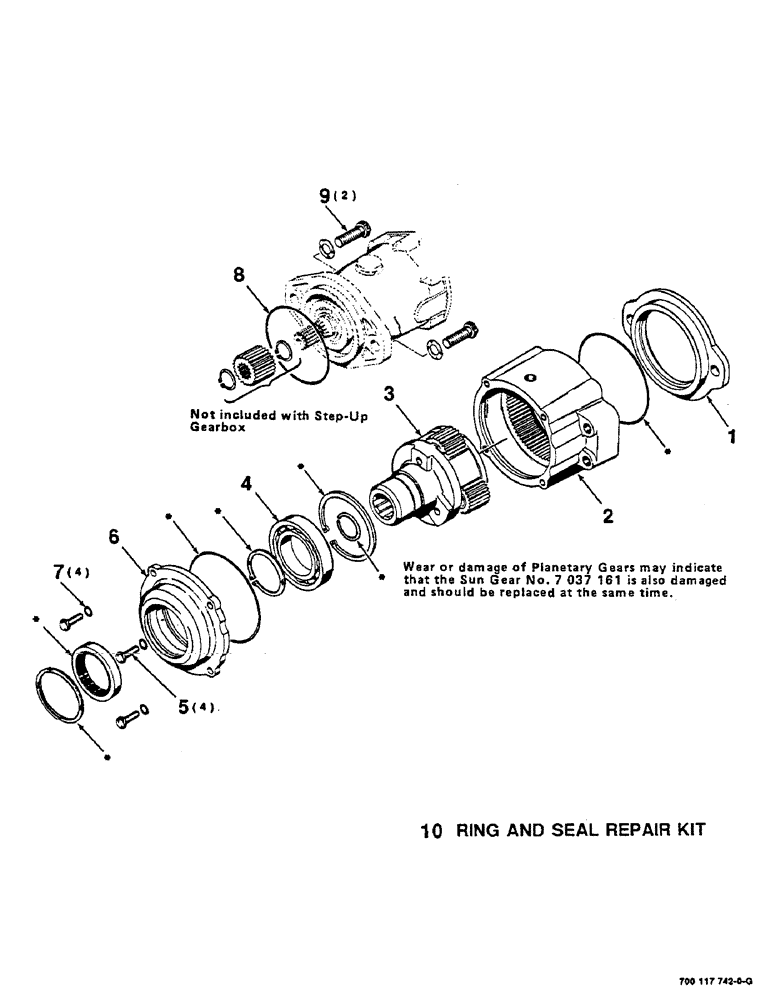

Схема запчастей Case IH SC412 - (8-08) - GEARBOX STEP-UP ASSEMBLY (540 RPM PUMP), (700712138 GEARBOX ASSEMBLY COMPLETE) (08) - HYDRAULICS
3
8
2
9
10
4
1
5
6
7

Артикул

Название

Примечание

Количество

700712138

GEARBOX ASSY

GEARBOX ASSEMBLY COMPLETE (540 RPM)

1шт.

700712138R

REMAN-GEARBOX

Remanufactured Gearbox

1шт.

700712138C

CORE-GEARBOX

Return Number, Gearbox, (540 RPM)

1шт.

1

T55323

PLATE

ADAPTER PLATE

1шт.

2

700700713

HOUSING

ASSEMBLY (includes needle bearing)

1шт.

3

700712140

CARRIER

PLANETARY CARRIER (includes gears)

1шт.

4

S94692

BALL BEARING,55 mm ID x 90 mm OD x 18 mm

BEARING

1шт.

5

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

C Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

6

T55322

LARGE PLATE

FRONT PLATE

1шт.

7

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

WASHER, LOCK, Ext Tooth, 5/16"

4шт.

8

238-5155

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

KIT -155, 70 Duro, 3.987" ID x .103" Thk

1шт.

9

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

10

1260903C1

SEAL KIT

O-RING & SEAL REPAIR KIT, includes items in art marked with asterisk.

1шт.

Выбрано товаров: 13
