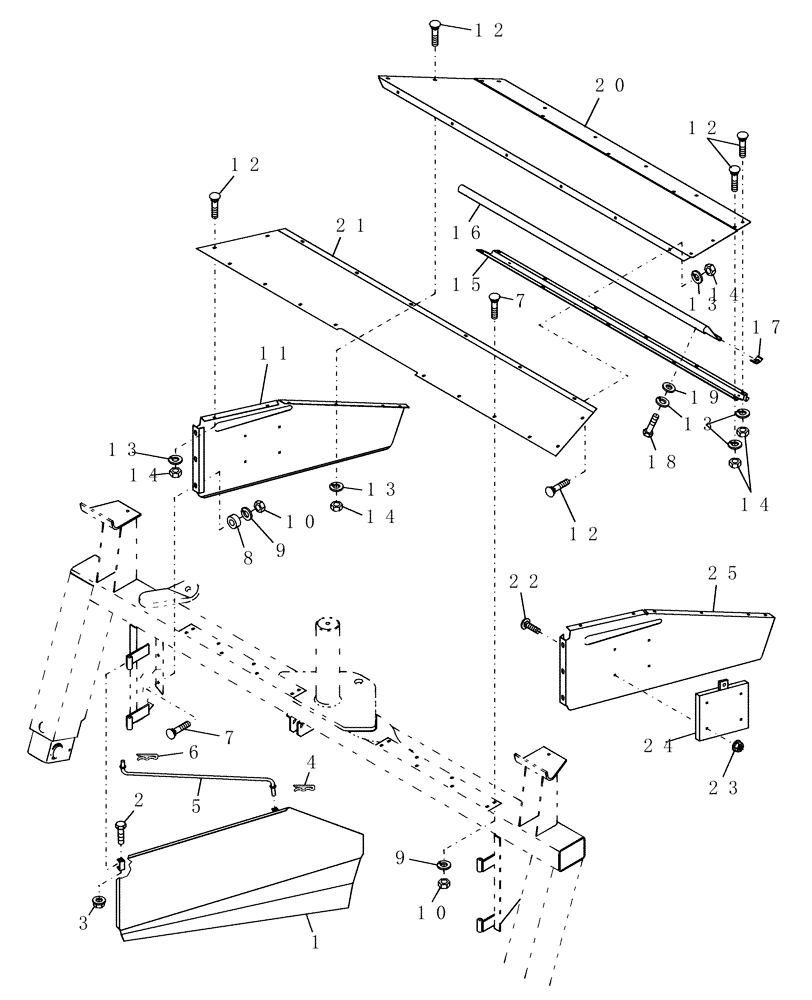

Запчасти Case IH SC101 (90.119.02) - WINDROW SHIELD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

86625346

SHIELD

RH

1шт.

1

86625344

SHIELD

LH

1шт.

2

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

4шт.

3

88871

NUT,1/2"-13, GC

4шт.

4

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

2шт.

5

86510969

ROD

2шт.

6

216698

COTTER PIN,0.125" OD x 1.75" L

2шт.

7

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

14шт.

8

213404

SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL

6шт.

9

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

14шт.

10

9628503

NUT,3/8"-16, G5

14шт.

11

86581602

SHIELD

RH

1шт.

12

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

25шт.

13

80681

LOCK WASHER,5/16"

27шт.

14

9635082

NUT,5/16" - 18, Gr 5

25шт.

15

86510976

SUPPORT

1шт.

16

86626728

SHIELD

Fluffing Baffle

1шт.

17

128484

WASHER

2шт.

18

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

19

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

20

86626730

COVER

1шт.

21

86626726

COVER

1шт.

22

88715

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1/2", Gr 5, Full Thd

1шт.

23

9626558

FLANGE NUT,Flg, 1/4"-20

1шт.

24

86613674

CASE

Manual

1шт.

25

86581601

SHIELD

LH

1шт.
