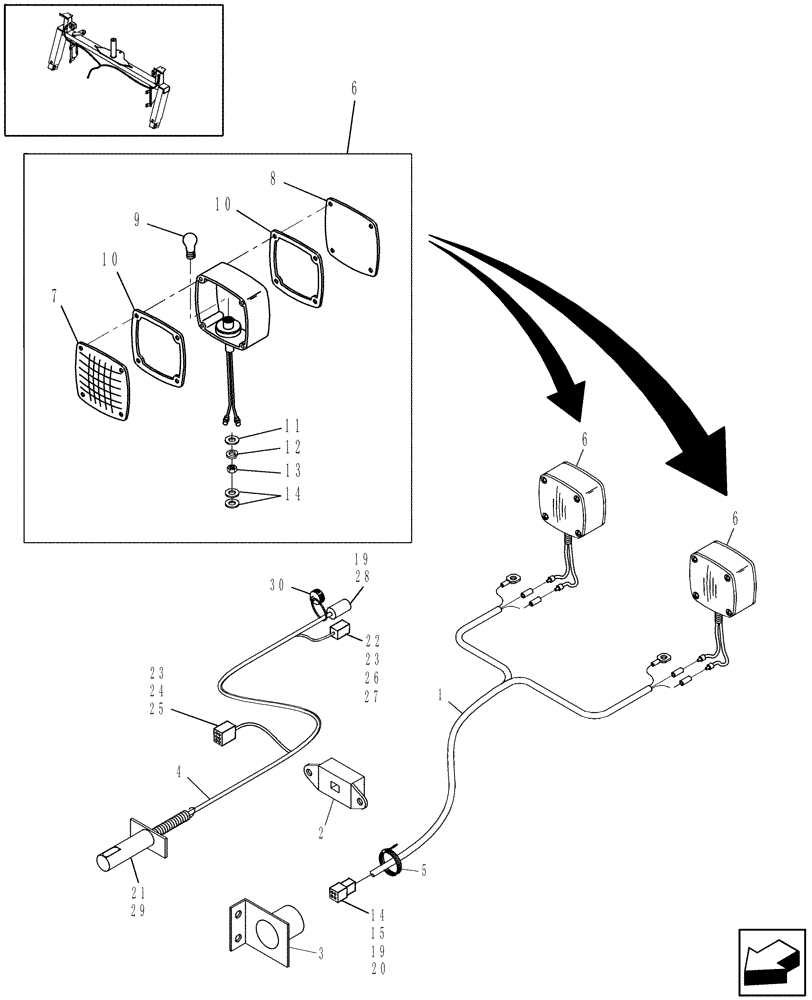

Запчасти Case IH SC101 (55.404.02) - SQUARE TAIL LIGHTS & WIRING (55) - ELECTRICAL SYSTEMS

1

86560343

WIRE HARNESS

Lighting, Includes: Ref. 17 - 23

1шт.

2

86561136

MODULE

1шт.

3

9611467

HOLDER

1шт.

4

86560342

WIRE HARNESS

1шт.

5

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

8шт.

6

86514198

TAIL LAMP

Includes: Ref. 7 - 14

2шт.

7

86537132

KIT

Lens, Black

2шт.

8

853711

LENS

Red

1шт.

9

86537133

BULB,C6, #1157, 12.8V

1шт.

10

853709

GASKET,1.65mm Thk

2шт.

11

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

1шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

13

280963

NUT,Nut, 1/2-20 GR 5 ZND

1шт.

14

86515458

WASHER,13mm ID x 22.22mm OD x 1.62mm Thk

2шт.

15

87694154

CONTACT HOUSING,Male, 4 Pole

4 Contact Housing, Tongue

1шт.

16

87694145

ELEC CONNECTOR

Wedge Lock for 4 Way Receptacle

1шт.

19

87694144

TERMINAL CONNECTOR,Male, 0.75 - 2 mm2

Stamped Contact

2шт.

20

87695607

TERMINAL CONNECTOR,Male, 0.75 - 2 mm2

Stamped Contact

2шт.

21

87704559

TERMINAL

Terminal

5шт.

22

87694143

TERMINAL CONNECTOR,Female, 0.75 - 2 mm2

Size 14, same as 225404c1

2шт.

23

87694141

TERMINAL CONNECTOR,Female, 0.75 - 2 mm2

Stamped Contact

8шт.

24

87694150

LOCKING TAB,Wedge Lock

For 6 Way Plug

1шт.

25

87694112

ELEC CONNECTOR,Female, 6 Pole

6 Way Recepacle Housing, Connects to Module, Ref. 2

5шт.

26

87694153

CONTACT HOUSING,Female, 4 Cavities

4 Way Recepacle Housing, To Trail Frame Harness

1шт.

27

87694146

ELEC CONNECTOR,Locking, Green

Wedge Lock For 4 Contact Plug

1шт.

28

225161C1

ADAPTER

3 Cavity Housing, To Header Harness

1шт.

29

84137504

MULTIPOLE CONNECTOR,Female, 7 Pole

7 Cavities, To Tractor 7 pin Rectacle

1шт.

30

225290C1

DUST CAP

1шт.
