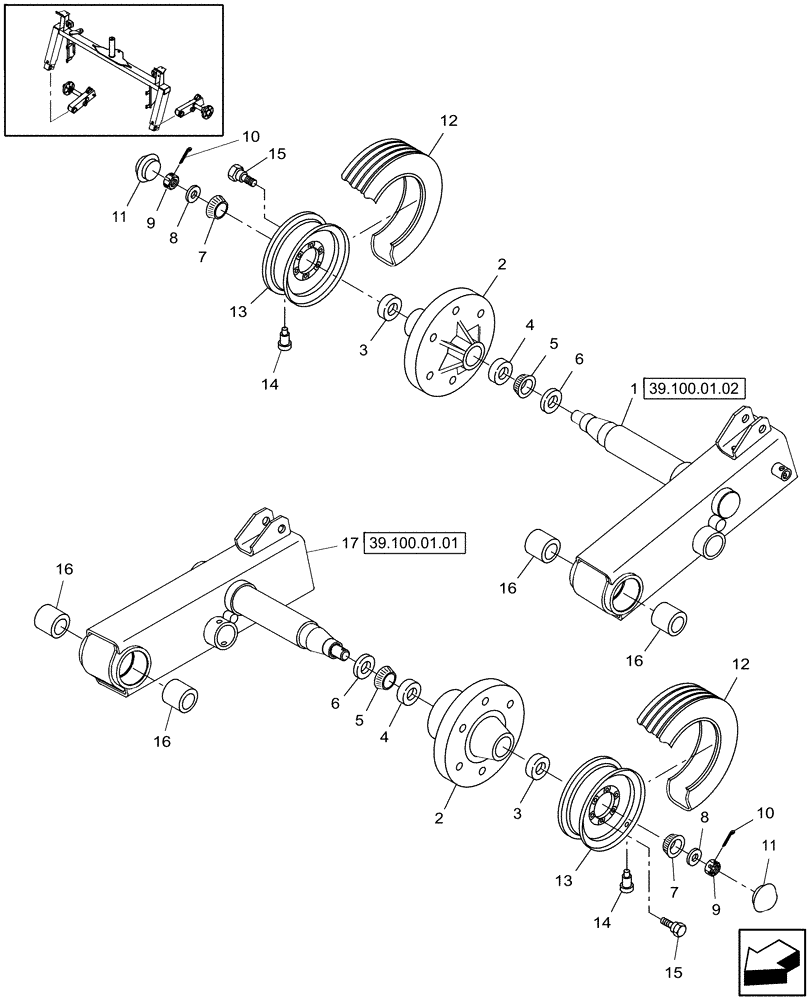

Запчасти Case IH SC101 (44.100.01) - HUB, SPINDLE, TIRES & WHEELS (44) - WHEELS

1

87739163

ARM

RH, Includes: Ref. 16

1шт.

2

86632701

HUB

2шт.

3

175508

BEARING CUP,59.16mm OD x 11.94mm W

2шт.

4

199955

BEARING CUP,82mm OD x 17mm W

2шт.

5

199954

BEARING CONE,50mm ID x 21.5mm W

2шт.

6

245856

OIL SEAL,57.15mm ID x 82.75mm OD x 6.76mm Thk

Oil

2шт.

7

175507

BEARING CONE,35 mm ID x 16.764 mm

2шт.

8

9845587

WASHER,23.8mm ID x 44.5mm OD x 6.4mm Thk

Hardened, M23

2шт.

9

280172

SLOTTED NUT,7/8"-14

2шт.

10

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

2шт.

11

249128

HUB CAP

2шт.

12

86564435

TYRE/TIRE

Tubeless, 31 x 13.50 - 15 Terra Rib, 8 Ply

2шт.

13

87047834

WHEEL

2шт.

14

196033

VALVE STEM

Tubeless Tire

2шт.

15

86628557

WHEEL BOLT,Hex Csk, 9/16" - 18 x 1 1/8", HTS

12шт.

16

575789

DRIVE BUSHING,64.01mm ID x 70.31mm OD x 44.45mm L

4шт.

17

87739159

ARM

LH, Includes: Ref. 16

1шт.

18

87298567

KIT

Wheel Bearing

2шт.

Includes Ref. 3 Thru 11

1шт.

Ship Direct Option

1шт.
