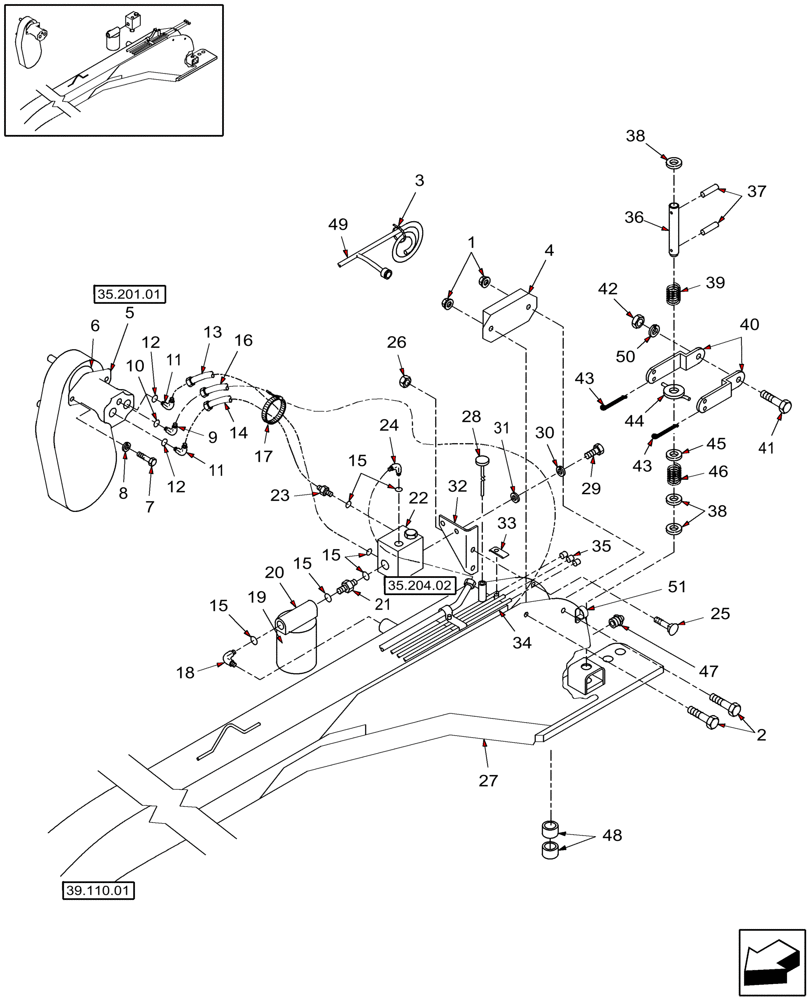

Запчасти Case IH SC101 (39.110.02) - TONGUE, REAR (39) - FRAMES AND BALLASTING

1

9626558

FLANGE NUT,Flg, 1/4"-20

2шт.

2

86521550

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

3

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

1шт.

4

86561136

MODULE

Lighting

1шт.

5

86837566

HYDRAULIC MOTOR

44cc

1шт.

To Operate The HDX Series Headers

1шт.

5

86837566R

REMAN-HYD MOTOR

SC101 (10/08-)

1шт.

5

86837566C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

5

87298004

REMAN-HYD MOTOR

SC101 Pivot Tongue For MC -- Has Radial Side Ports

1шт.

5

87298005

CORE-MOTOR HYDRAULIC

Return Number

1шт.

6

9706914

O-RING,0.07" Thk x 3.989" ID, -45, Cl 5, 75 Duro

1шт.

7

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

9

86512937

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

Includes: Ref. 10

1шт.

10

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

11

86512926

HYD CONNECTOR,1-5/16" - 12 JIC x 1-1/16" - 12 ORB

Incl Ref. 12

2шт.

12

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

13

86900301

FLEXIBLE HOSE,25.4mm ID x 2247.9mm L, SAE 100R4

1шт.

14

86900300

FLEXIBLE HOSE,25.4mm ID x 2349.5mm L, SAE 100R12

1шт.

15

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

4шт.

16

86900302

FLEXIBLE HOSE,0.38" ID x 115.50", SAE 100R6

1шт.

17

527350

STRAP

1/2" x 20"

6шт.

18

624145

ELBOW

Adapter, Includes: Ref. 15

1шт.

19

86632018

HYDRAULIC OIL FILTER

1шт.

20

86514933

HOUSING

Filter

1шт.

21

9790605

HYD CONNECTOR

Includes: (2) Ref. 15

1шт.

23

378970

HYD CONNECTOR,1-5/16" - 12 ORB x 1-5/16" - 12 JIC

Includes: Ref. 15

1шт.

24

268277

90 ELBOW,1-5/16" - 12 JIC x 1-5/16" - 12 ORB

Includes: Ref. 15

1шт.

25

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

2шт.

26

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.

27

87747889

TONGUE

Includes: 48, 52 & Decals

2шт.

28

846829

DIPSTICK

1шт.

29

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

30

80681

LOCK WASHER,5/16"

2шт.

31

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

32

86510892

ANGLE

1шт.

33

768999

CLAMP

1шт.

34

765395

PAD

1шт.

35

86513049

PLUG,9/16" - 18 JIC

Hydraulic Hex

3шт.

36

86627559

PIN

W/ 1/4" Holes

1шт.

37

87343

LOCK PIN,6.35mm OD x 44.45mm L, Slotted

2шт.

38

142656

WASHER,33.35mm ID x 47.63mm OD x 3.43mm Thk

1-1/4"

1шт.

39

35324

SPRING

1шт.

40

690605

HANDLE

2шт.

41

86521551

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

42

86521605

FLANGE NUT,5/16"-18, Cl 5

1шт.

43

87394

COTTER PIN,1/8" x 1/2"

2шт.

44

690607

ROD

1шт.

45

696508

WASHER,33.3mm ID x 88.9mm OD x 3.43mm Thk

1шт.

46

48176

SPRING

1шт.

47

87414

LUBE NIPPLE,1/4" - 28

1шт.

48

86515632

DRIVE BUSHING,102.13mm ID x 114.25mm OD x 76.2mm L

4" (102mm) ID

2шт.

49

86560342

WIRE HARNESS

See Breakdown 55.404.02

1шт.

50

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3/32" x 11-1/2" L

1шт.

51

80681

LOCK WASHER,5/16"

1шт.

52

787219

SLEEVE

Cylinder Mount, Pressed into tongue

2шт.

Not Illustrated

1шт.
