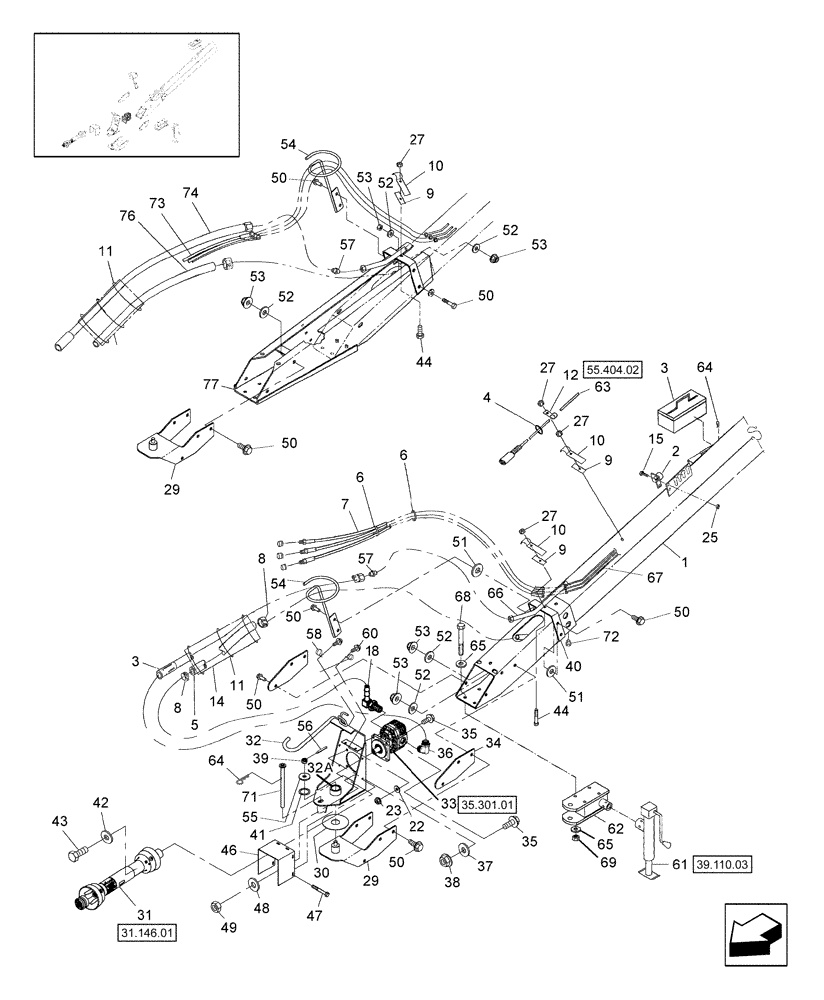

Запчасти Case IH SC101 (39.110.01) - TONGUE, FRONT (39) - FRAMES AND BALLASTING

1

87747889

TONGUE

1шт.

2

86705581

STEM

1шт.

3

87666380

HOSE ASSY.

1шт.

5

87740109

HYDRAULIC HOSE,31.75 mm ID x mm

1шт.

6

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

9шт.

7

86514940

HOSE,25.4mm ID x 1879.6mm L

3шт.

8

86634186

HOSE CLAMP,32mm - 54mm

2шт.

9

765394

PAD,19.8mm ID x 31.8mm W x 101.6mm L

8шт.

10

769000

CLAMP

8шт.

11

527350

STRAP

3шт.

12

86572009

CLAMP,9.5mm, Coat, 10.3mm Bolt Hole, P Type

8шт.

13

9611467

HOLDER

1шт.

14

86520217

SLEEVE

1шт.

15

86521550

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

17

87997

BOLT,Hex, 1/2" - 13 x 5", Gr 5

2шт.

18

217-355

FITTING,90 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

90º, 1 1/4" Hose x 1 5/8"-12 ORB Beaded

1шт.

20

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

10шт.

21

86634186

HOSE CLAMP,32mm - 54mm

2шт.

22

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

23

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.

24

86521610

FLANGE NUT,Flg, 1/2"-13

2шт.

25

9626558

FLANGE NUT,Flg, 1/4"-20

2шт.

27

9637692

NUT,3/8"-16, Gr B

15шт.

29

87050261

SUPPORT

1шт.

30

87011656

WASHER

1шт.

31

87035544

PTO SHAFT

1шт.

32

84238370

MOUNT

Includes: Ref. 32a

1шт.

33

87587983

PUMP

Hydraulic

1шт.

87587983R

REMAN-HYD PUMP

SC101 (10/08-)

1шт.

87587983C

CORE-HYDRAULIC PUMP

Return Number

1шт.

32a

87708864

BUSHING

1шт.

34

87738352

PLATE

2шт.

14' & 16' Headers Only

1шт.

35

86521615

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

4шт.

36

268277

90 ELBOW,1-5/16" - 12 JIC x 1-5/16" - 12 ORB

1шт.

37

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

38

86521607

FLANGE NUT,Flg, 1/2"-13, G5

4шт.

39

88886

SLOTTED NUT,3/4"-16

1шт.

40

87739115

BRACKET

1шт.

41

87470613

WASHER

1шт.

42

87011851

WASHER,12.7mm ID x 41.3mm OD x 6.35mm Thk

1шт.

43

86505834

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 8, Full Thd

1шт.

44

9706752

CARRIAGE BOLT,3/8" - 16 x 1-1/2", Gr 5

1шт.

45

5135060

TOOL BOX

1шт.

46

87748394

SHIELD

1шт.

47

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

6шт.

48

80577826

WASHER,8.7mm ID x 34.93mm OD x 1.94mm Thk

6шт.

49

86629544

NUT,5/16” – 18, GR B

6шт.

50

86521620

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

10шт.

51

333040

WASHER,16.5mm ID x 49mm OD x 6mm Thk

4шт.

14' & 16' Headers Only

1шт.

52

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

10шт.

53

86521608

FLANGE NUT,Flg, 5/8"-11, G5

10шт.

54

87743263

GUIDE

1шт.

55

87758721

WASHER

1шт.

56

86544803

PIN

1шт.

57

86513057

UNION

1шт.

58

603022

CLAMP,44.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

59

86637998

CLAMP,38.1mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

60

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

61

86617866

JACK

1шт.

62

86626505

HITCH

1шт.

63

86560342

WIRE HARNESS

Repair Parts, See 55.404.02

1шт.

64

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

2шт.

65

130358

WASHER,16.28mm ID x 38.35mm OD x 4.11mm Thk

8шт.

66

86514931

HYD TUBE,25.40 mm OD x 6671.6, 95.8 mm L

1шт.

67

86514932

HYD TUBE

3шт.

68

280232

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

4шт.

69

280374

NUT,Hex, 5/8" - 11, Gr 5

8шт.

70

88871

NUT,1/2"-13, GC

7шт.

71

87636037

ROD

1шт.

72

9823253

MAGNETIC PLUG

1шт.

73

86523530

HOSE,0.38" ID x 97.00", SAE J516

3шт.

18' Headers Only

1шт.

74

84164134

FLEXIBLE HOSE,25.4mm ID x 1956mm L, SAE 100R12

Pressure

1шт.

18' Headers Only

1шт.

75

84164253

PROTECTIVE SLEEVE

1шт.

18' Headers Only

1шт.

76

87704853

HYDRAULIC HOSE,31.75mm ID x 2032mm L

Suction

1шт.

18' Headers Only

1шт.

77

87746960

EXTENSION

1шт.

18' Headers Only

1шт.
