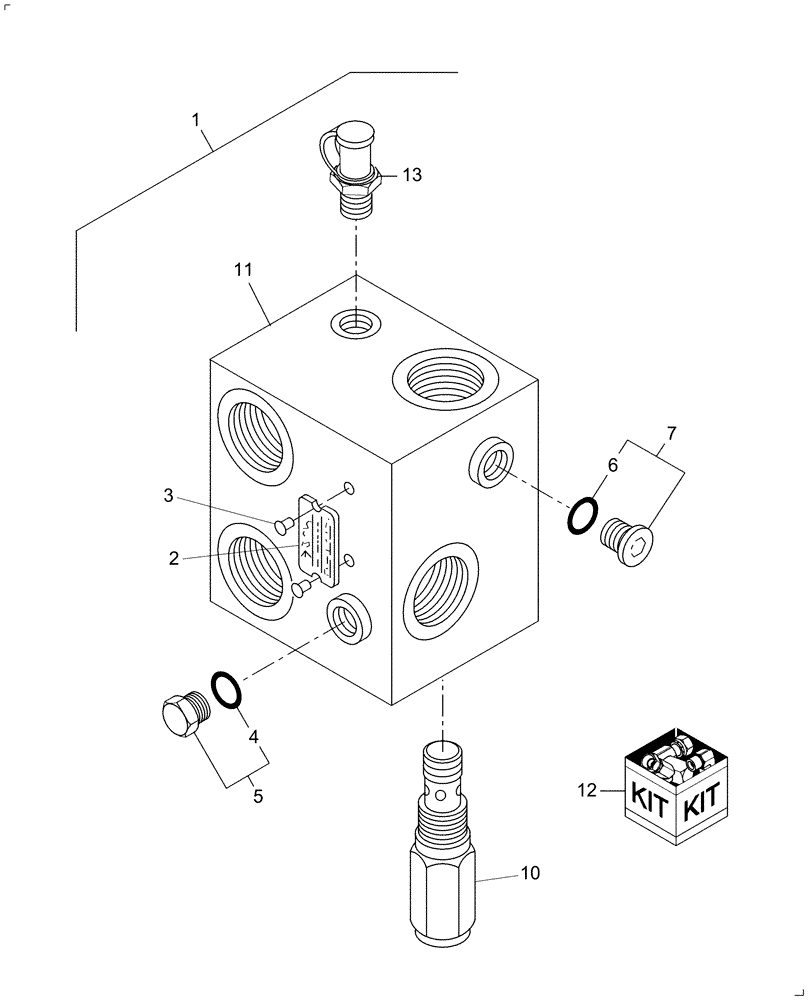

Запчасти Case IH SC101 (35.204.02) - RELIEF VALVE, DRIVE (35) - HYDRAULIC SYSTEMS

1

87394354

VALVE, PRESSURE RELI

EF Includes: Ref. 2 - 11

1шт.

2

NSS

NOT SOLD SEPARAT

Nameplate

1шт.

3

NSS

NOT SOLD SEPARAT

Rivet

2шт.

4

129270

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

1шт.

5

129998

PLUG,1/2" - 20 ORB

Includes: Ref. 4

1шт.

6

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

7

86508737

PLUG,7/8" - 14

Includes: Ref. 6

1шт.

10

87396661

VALVE PRESSURE RELIE

1шт.

11

NSS

NOT SOLD SEPARAT

Manifold

1шт.

12

86508168

SEAL KIT

Services Ref. 10, Includes: (2) O-Rings, (1) Back-up Washer

1шт.

13

87026252

ASSEMBLY

Diagnostic, Includes: Dust Cap & O-Ring

1шт.

Components are N.S.S.

1шт.
