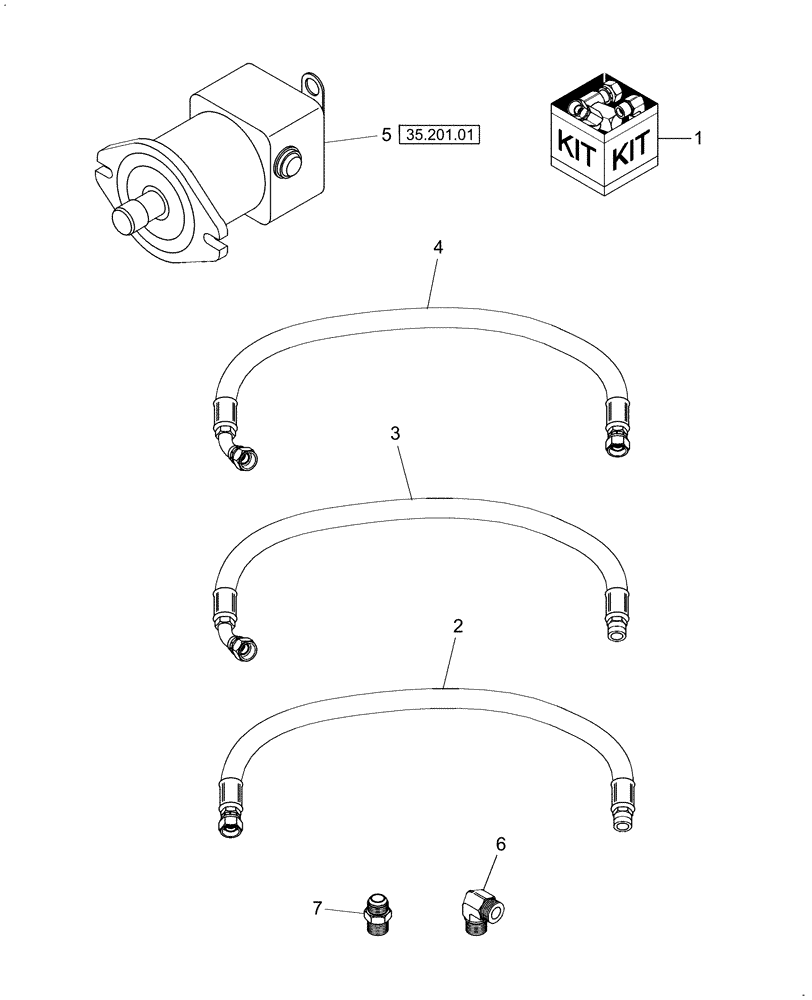

Запчасти Case IH SC101 (35.201.02) - HYDRAULIC HEADER MOTOR UPGRADE KIT, HDX SERIES HEADERS (35) - HYDRAULIC SYSTEMS

1

W0

ORDER WHOLEGOODS

44cc Hyd. Motor Upgrade Kit, Includes: Ref. 2 - 7 & Instructions

1шт.

To Operate The HDX Series Headers

1шт.

2

86900302

FLEXIBLE HOSE,0.38" ID x 115.50", SAE 100R6

Str Male x Str Swivel Female 37° FL

1шт.

3

86900301

FLEXIBLE HOSE,25.4mm ID x 2247.9mm L, SAE 100R4

88-1/2", Str Swivel Male x 45° Swivel Female 37° FL

1шт.

4

86900300

FLEXIBLE HOSE,25.4mm ID x 2349.5mm L, SAE 100R12

92-1/2", Str Swivel Female 37° FL x 45° Swivel Female 37° FL

1шт.

5

86837566

HYDRAULIC MOTOR

44cc

1шт.

5

86837566R

REMAN-HYD MOTOR

SC101 (10/08-)

1шт.

5

86837566C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

5

87298004

REMAN-HYD MOTOR

SC101 Pivot Tongue For MC -- Has Radial side Ports

1шт.

5

87298005

CORE-MOTOR HYDRAULIC

Return Number

1шт.

6

86512937

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

Includes: Ref. 8

1шт.

7

86512926

HYD CONNECTOR,1-5/16" - 12 JIC x 1-1/16" - 12 ORB

Incl Ref. 9

2шт.

8

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Not Illustrated

1шт.

9

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

Not Illustrated

1шт.
