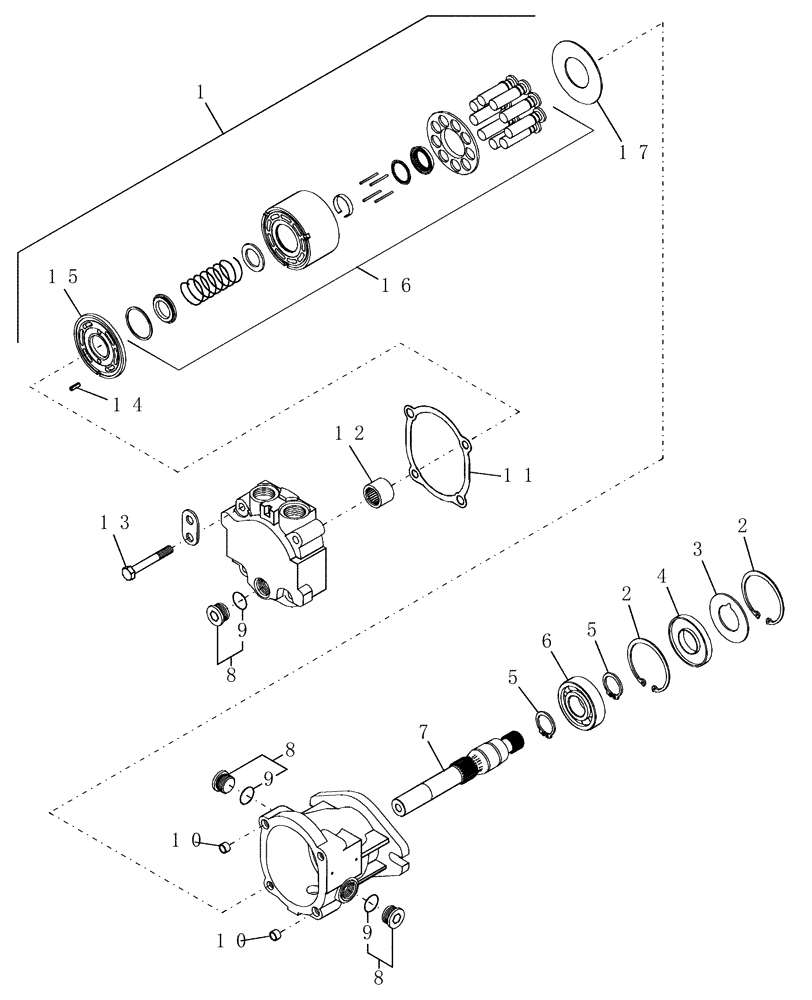

Запчасти Case IH SC101 (35.201.01) - HYDRAULIC MOTOR, HDX SERIES HEADERS (35) - HYDRAULIC SYSTEMS

1

86837566

HYDRAULIC MOTOR

44cc, Sauer Sundstrand

1шт.

To Operate The HDX Series Headers

1шт.

1

86837566R

REMAN-HYD MOTOR

SC101 (10/08-)

1шт.

1

86837566C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

1

87298004

REMAN-HYD MOTOR

SC101 Pivot Tongue For MC -- Has Radial Side Ports

1шт.

1

87298005

CORE-MOTOR HYDRAULIC

Return Number

1шт.

2

25954

SNAP RING,2.812", Int, #281

2шт.

3

86537277

WASHER

1шт.

4

86502227

SEAL,32.99mm ID x 72.31mm OD x 9.53mm Thk

Lip

1шт.

5

9671424

SNAP RING,#137, Ext

2шт.

6

243023

BALL BEARING,34.99mm ID x 72mm OD x 17mm W

1шт.

7

86556660

SHAFT

1шт.

8

86508737

PLUG,7/8" - 14

HSH, 7/8"-14 UNF

2шт.

9

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

10

86554721

ROLL PIN

2шт.

11

86556366

GASKET

1шт.

12

272850

NEEDLE BEARING,Needle, 25.39mm ID x 33.35mm OD x 25.4mm W

1шт.

13

11107631

SCREW,Hex, M10 x 70mm, Cl 10.9

4шт.

14

88180

LOCK PIN,4.76mm OD x 15.88mm L, Slotted

1шт.

15

NSS

NOT SOLD SEPARAT

Valve Plate

1шт.

16

NSS

NOT SOLD SEPARAT

Cylinder Block Kit

1шт.

17

86502277

THRUST PLATE

1шт.
