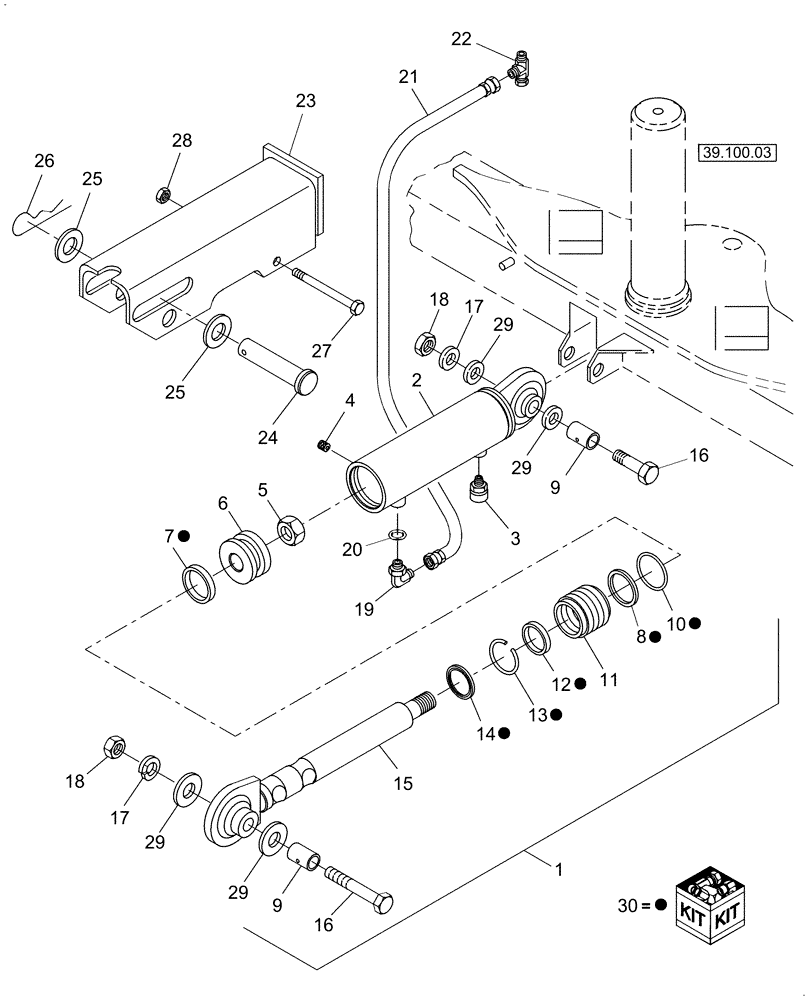

Запчасти Case IH SC101 (35.100.05) - HEADER TILT (35) - HYDRAULIC SYSTEMS

1

87717710

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 101.6mm Stroke

Header Tilt, Includes: Ref. 2, 3, 5 - 8, 10 - 12, 14, & 15

1шт.

Cylinders are Stamped with a Date Code that Starts with the Letter

1шт.

2

NSS

NOT SOLD SEPARAT

Barrel

1шт.

3

854071

BREATHER

1шт.

4

529034

SET SCREW

Set, HS, Self-Locking, Cup Pt, 1/4"-20 x 1/4"

1шт.

5

280724

LOCK NUT,3/4" - 16

2шт.

6

87025737

PISTON

1шт.

7

86553483

SEAL

Piston, 3 Piece

1шт.

8

270103

BACK-UP RING,45.01mm ID x 51mm OD x 1.27mm Thk

Back-up, 1.772" ID x .043" Thk

1шт.

9

87580646

BUSHING,19.05mm ID x 34.92mm OD x 34.92mm L

2шт.

10

235782

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

1шт.

11

87025720

HEAD

1шт.

12

86513307

SEAL,31.75mm ID x 37.85mm OD x 6.35mm Thk

1шт.

14

529340

SEAL,31.75mm ID x 43.05mm OD x 4.76mm Thk

1шт.

15

87026072

PISTON ROD

1шт.

16

86977759

BOLT,Hex, 3/4" - 10 x 3 1/2", Gr 5

2шт.

17

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

2шт.

18

280954

NUT,3/4"-10, G5

2шт.

19

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 20

1шт.

20

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

21

9621424

HOSE,9.52 mm ID x 736.60 mm

1шт.

22

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

23

86615562

CHANNEL

1шт.

24

86510381

PIN

1шт.

25

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

2шт.

26

86000109

COTTER PIN

1/8" Thk x 3-1/4" Lg

1шт.

27

86507008

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

1шт.

28

280736

NUT,5/16"-18, GC

1шт.

29

86617511

WASHER,19.84mm ID x 38.1mm OD x 4.78mm Thk

1-1/2" OD, Plated

4шт.

30

87025441

SEAL KIT

Kit

1шт.
