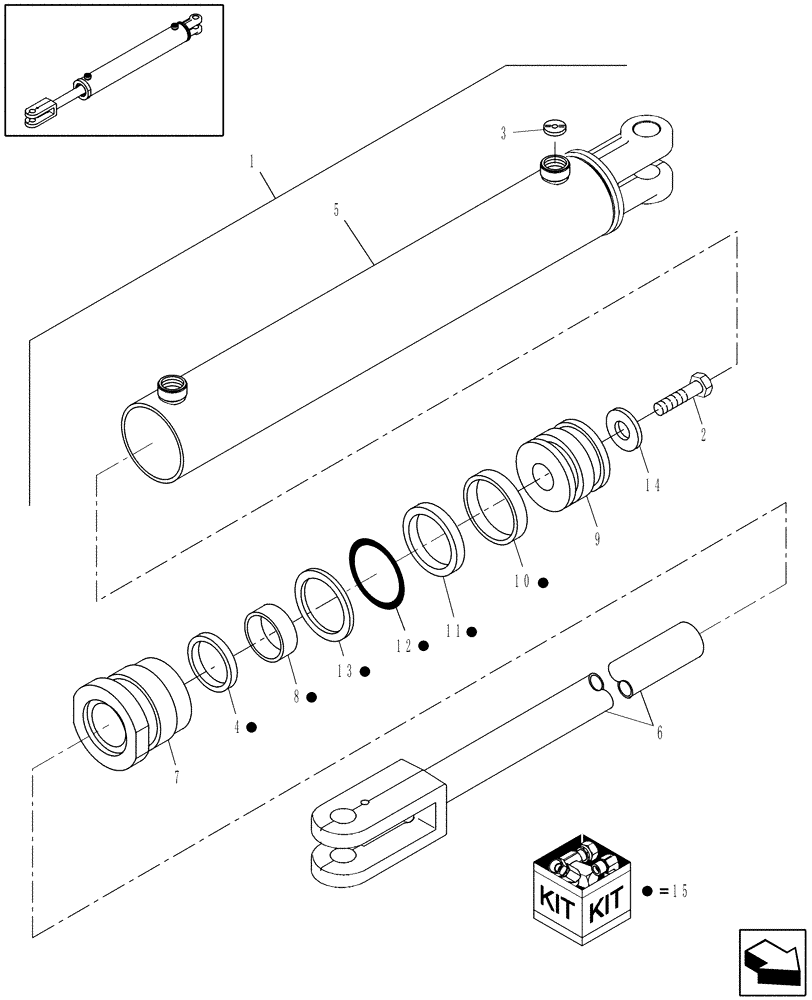

Запчасти Case IH SC101 (35.100.03) - HYDRAULIC CYLINDER, SWING (35) - HYDRAULIC SYSTEMS

1

87018098

HYDRAULIC CYLINDER

Swing

1шт.

Cylinders are Stamped with a Date Code that Starts with the Letter

1шт.

87515542R

REMAN-HYD CYLINDER

SC101 (10/08-), Reman for New P/N 87018098

1шт.

87515542C

CORE-HYD CYLINDER

Return Number

1шт.

2

514101

LOCK NUT,Hex, 1" - 14

G8, 1"-14

1шт.

3

285636

ORIFICE

1шт.

4

511979

SEAL,38.1mm ID x 51mm OD x 6.35mm Thk

1шт.

5

NSS

NOT SOLD SEPARAT

Barrel

1шт.

6

86643607

ROD

Piston, Female Threaded End

1шт.

7

86603706

CYLINDER HEAD

1шт.

8

592955

FUSE

1шт.

9

86603723

PISTON

Decelerator

1шт.

10

771714

RING

Wear, 2.876" ID x .50" Thk

1шт.

11

86595542

SEAL

1шт.

12

270192

O-RING,0.21" Thk x 2.725" ID, -335, Cl 5, 75 Duro

1шт.

13

86609324

SEALING WASHER

SEAL WASHER Back-Up, 2.643" ID x .064" Thk

1шт.

14

86979387

BOLT,Hex, 1" - 8 x 3 1/2", Gr 8

1шт.

15

9803749

WASHER

Hardened

1шт.

16

86603708

SEAL KIT

1шт.
