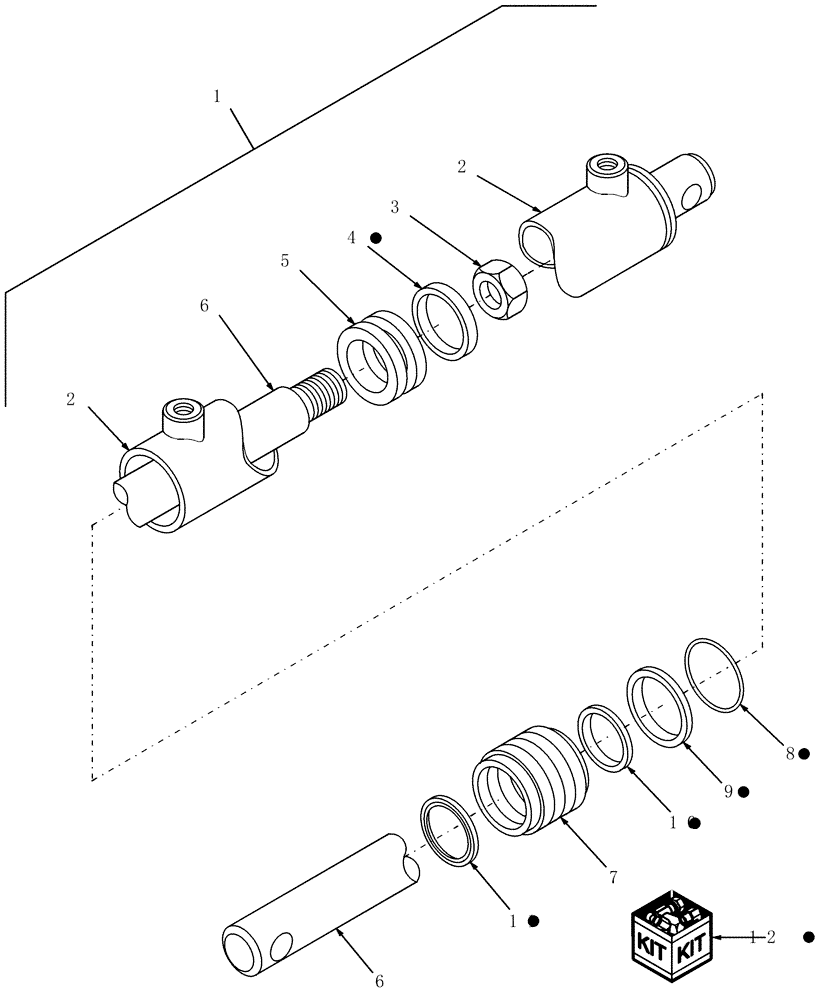

Запчасти Case IH SC101 (35.100.01.02) - HYDRAULIC CYLINDER, MASTER (35) - HYDRAULIC SYSTEMS

1

87018067

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 254mm Stroke

Master

1шт.

Cylinders are Stamped with a Date Code that Starts with the Letter

1шт.

2

NSS

NOT SOLD SEPARAT

Barrel

1шт.

3

280724

LOCK NUT,3/4" - 16

1шт.

4

86557272

SEAL

1шт.

5

87027473

PISTON

1шт.

6

87027477

PISTON ROD

1шт.

7

87027469

HEAD

1шт.

8

86637769

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

9

9603673

WASHER

Back-Up

1шт.

10

2978421

O-RING

1шт.

11

511979

SEAL,38.1mm ID x 51mm OD x 6.35mm Thk

Oil

1шт.

12

87027481

SEAL KIT

Includes: 4, 8 - 11

1шт.
