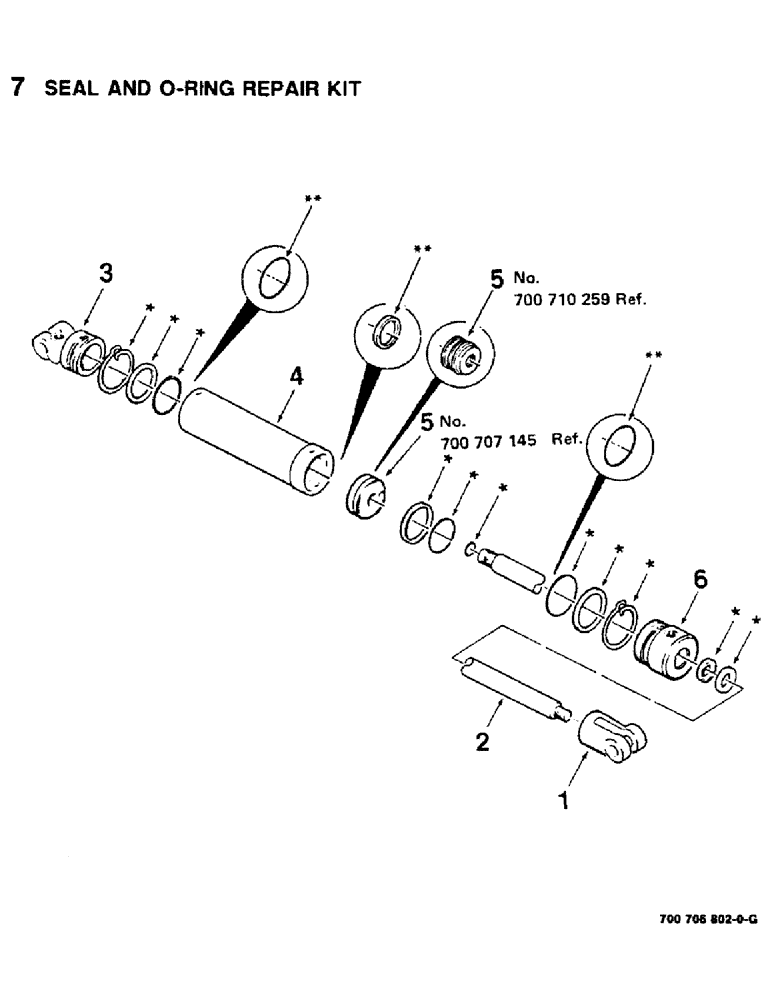

Запчасти Case IH 8380 (8-06) - HYDRAULIC CYLINDER ASSEMBLY, HEADER LIFT, SLAVE, 700706802 HYDRAULIC CYLINDER COMPLETE (08) - HYDRAULICS

700706802

CYLINDER

HYDRAULIC CYLINDER ASSEMBLY COMPLETE

1шт.

1

50-2087T1

END

CLEVIS - rod end

1шт.

2

102692A1

ROD

- piston

1шт.

3

700700105

HEAD

WITH CLEVIS

1шт.

4

700707099

SLEEVE CYLINDER

BARREL

1шт.

700710258

SLEEVE CYLINDER

BARREL

1шт.

5

700707145

PISTON

- cylinder (Sub. 700710259 piston & 700710260 seal and O-Ring repair kit)

1шт.

H436684

JACK PISTON

PISTON - cylinder

1шт.

700710260

SEAL KIT

AND O-RING REPAIR KIT

1шт.

6

102686A1

GLAND

BEARING - cylinder rod

1шт.

102690A1

TUBE

BARREL

1шт.

102686A1

GLAND

BEARING

1шт.

7

700707146

SEAL KIT

AND O-RING REPAIR KIT, Includes items in art marked with asterisk.

1шт.

700710260

SEAL KIT

AND O-RING REPAIR KIT, Includes items in art marked with asterisk & double asterisk.

1шт.
