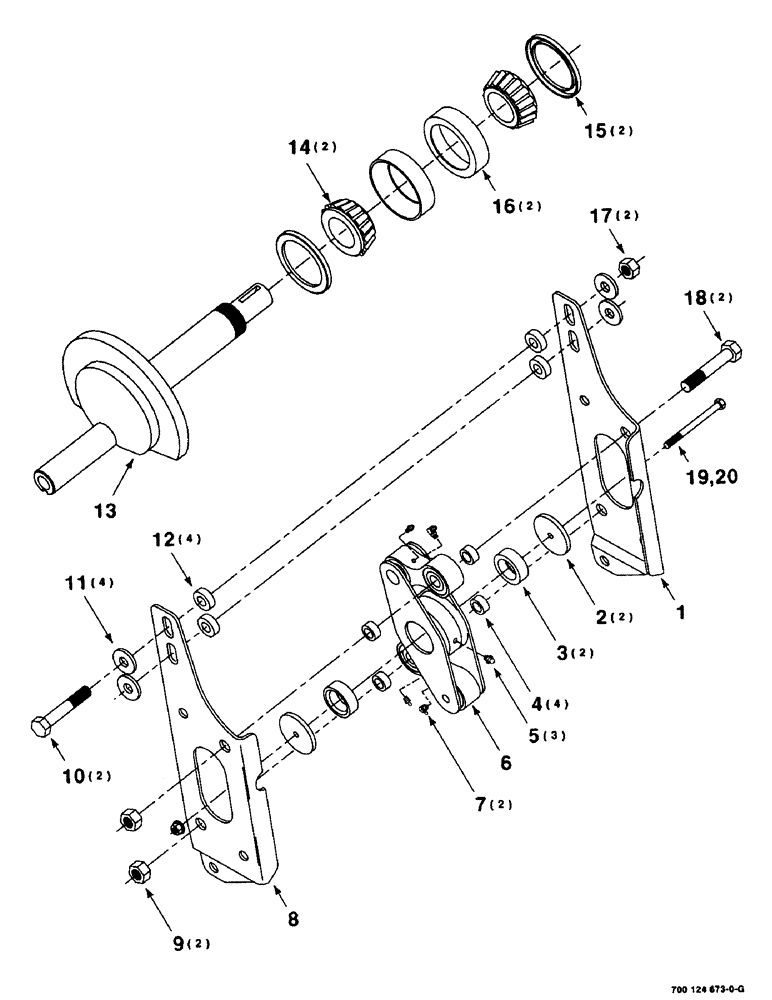

Запчасти Case IH 8380 (9-26) - SWAYBAR ASSEMBLY KIT, 700129383 SWAYBAR ASSEMBLY KIT (09) - CHASSIS

700124674

KIT

SWAYBAR ASSEMBLY KIT COMPLETE (Superseded by 700129383 and 700127947)

1шт.

700129383

KIT

SWAYBAR ASSEMBLY KIT COMPLETE

1шт.

700127947

KIT

SWAYBAR KIT, LESS CRANK AND BEARINGS (Less items 13, 14, 15, and 16)

1шт.

1

700124298

LARGE PLATE

PLATE - swaybar

1шт.

2

6617336

WEIGHT

2шт.

3

700124303

SPACER

2шт.

4

700124304

SPACER

4шт.

5

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

3шт.

6

700124300

LINK

ASSEMBLY

1шт.

7

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

2шт.

8

700124296

LARGE PLATE

PLATE - swaybar

1шт.

9

425-1412

JAM NUT,Jam, 3/4"-10, G5

3/4-10 HJN GR2

2шт.

10

26-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 8

5/8-11 X 3-3/4 C GR 8

2шт.

11

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

4шт.

12

700124306

SPACER

4шт.

13

700124293

PINION

PITMAN ASSEMBLY

1шт.

14

298194R91

ROLLER BEARING,44.45mm ID x 29.37mm W

CONE - bearing

2шт.

15

700706454

SEAL

2шт.

16

170254R1

BEARING, CUP

CUP - bearing

2шт.

17

429-1010

NUT,5/8"-11, G8

2шт.

18

413-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

3/4-10 X 3-1/4 C

2шт.

19

111-232

CARRIAGE BOLT,Short NK, 5/16"-18 x 4", G2

5/16-18 X 4 C

1шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

1шт.
