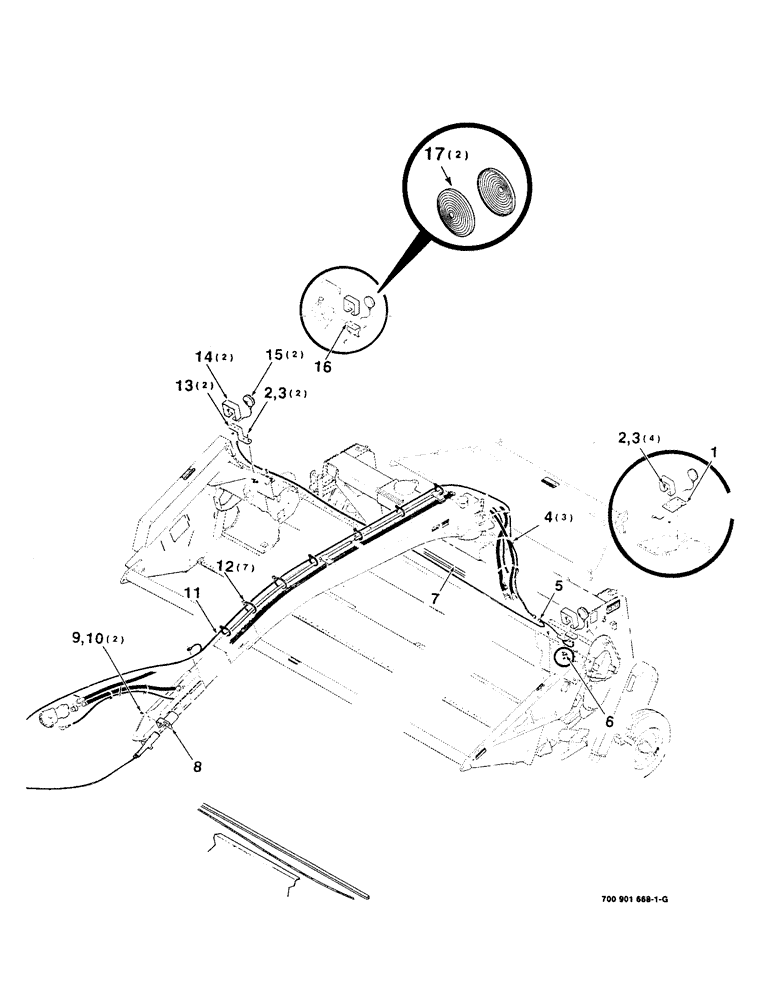

Запчасти Case IH 8380 (9-20) - LIGHT WARNING KIT, (HK10457 LIGHT WARNING KIT COMPLETE-TO BE (09) - CHASSIS

HK10457

LIGHT WARNING KIT COMPLETE

1шт.

1

700119007

SUPPORT

MOUNTING - flasher, left

1шт.

2

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

6шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

6шт.

4

7021728

STRAP

CABLE - tie

3шт.

5

700706873

HARNESS

- wiring

1шт.

6

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- line

1шт.

7

700119177

COVER

TRIM - edge

1шт.

8

183727C1

CAP

PLUG WITH CAP - electric

1шт.

9

163-16

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

1/4-20 X 3/4 HWHMS

2шт.

10

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

11

700706874

HARNESS

- wiring

1шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

7шт.

13

700115109

MOUNTING PARTS

MOUNTING - flasher

2шт.

14

700114720

GUARD

2шт.

15

199954A1

PACKAGE

LIGHT - flasher

2шт.

16

700114784

BRACKET

MOUNTING - flasher

1шт.

17

700711749

LENS

- flasher

2шт.
