(8-02) - HYDRAULIC ASSEMBLY, HEADER LIFT & HYDRO SWING

Запчасти Case IH 8380 (8-02) - HYDRAULIC ASSEMBLY, HEADER LIFT & HYDRO SWING (08) - HYDRAULICS

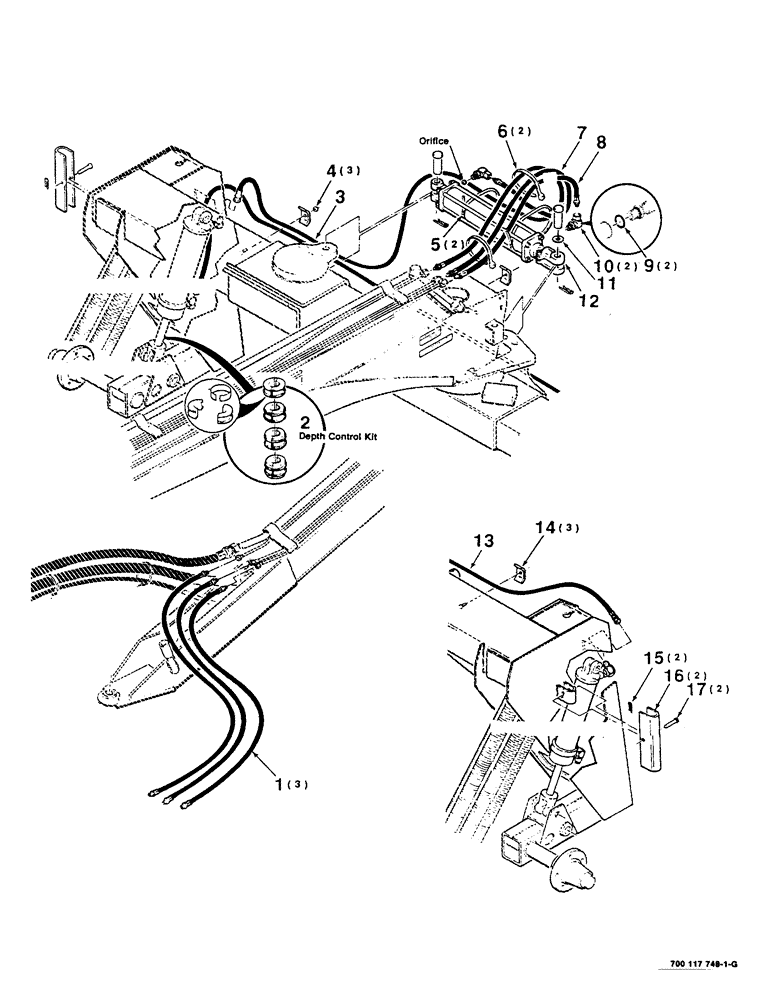

Схема запчастей Case IH 8380 - (8-02) - HYDRAULIC ASSEMBLY, HEADER LIFT & HYDRO SWING (08) - HYDRAULICS
2
8
11
13
7
16
9
4
12
6
14
15
10
17
5
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700700568

HOSE

- hydraulic

3шт.

2

7737869

COLLAR

DEPTH CONTROL KIT

1шт.

3

700706825

HOSE

- hydraulic

1шт.

4

230-4216

LOCK NUT,3/8"-16, GA

3/8-16 HCLN

3шт.

5

7021728

STRAP

CABLE TIE

2шт.

6

306132C1

CABLE TIE,14.5" L

14 in

2шт.

7

7073729

HYDRAULIC HOSE,0.38" ID x 52.00", SAE 100R1

HOSE - hydraulic

1шт.

8

7872005

HOSE

- hydraulic

1шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

10

218-5387

90 ELBOW,90 Degree, 3/4"-16 O-Ring x 3/8" NPSM Fem

90 degrees

2шт.

11

495-11106

WASHER,1", SAE

1шт.

12

700706828

CYLINDER

ASSEMBLY - hydraulic

1шт.

13

700704636

HOSE

- hydraulic 14 ft.

1шт.

14

6246995

CLAMP

- line

3шт.

15

T54573

PIN

HAIRPIN COTTER

2шт.

16

700115186

STOP

- safety

2шт.

17

63644

CLEVIS PIN

2шт.
