(9-14) - GAUGE WHEEL KIT, HK60562 GAUGE WHEEL KIT COMPLETE, TO BE ORDERED THRU WHOLEGOODS ONLY

Запчасти Case IH 8380 (9-14) - GAUGE WHEEL KIT, HK60562 GAUGE WHEEL KIT COMPLETE, TO BE ORDERED THRU WHOLEGOODS ONLY (09) - CHASSIS

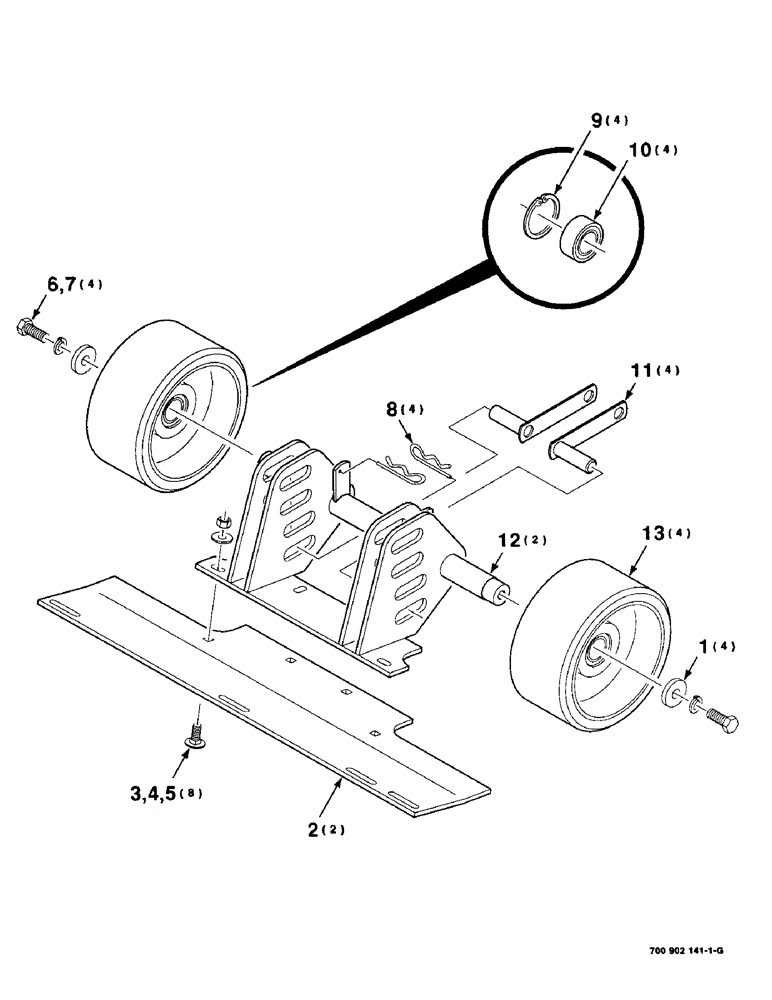

Схема запчастей Case IH 8380 - (9-14) - GAUGE WHEEL KIT, HK60562 GAUGE WHEEL KIT COMPLETE, TO BE ORDERED THRU WHOLEGOODS ONLY (09) - CHASSIS
9
4
1
10
8
12
5
13
2
7
6
11
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

HK60562

GAUGE

WHEEL KIT

1шт.

1

6223374

WASHER

4шт.

2

700121449

SKID/SHOE

SKID

2шт.

3

707042

BOLT,#3, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 PB

8шт.

4

425-106

NUT,3/8"-16, Cl 5

8шт.

5

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 P

8шт.

6

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

8

T54573

PIN

1/4 X 2-9/16 HAIRPIN COTTER

4шт.

9

100-21218

SNAP RING,2.165", Int, #216

Ring, Snap, 2.165", Int, #216

4шт.

10

700709106

BEARING, ROLLER, CYL,29.99mm ID x 55mm OD x 23.02mm W

BEARING - cylindrical

4шт.

11

700119703

PIN

4шт.

12

700121450

SUPPORT

- double, wheel

2шт.

13

700119691

WHEEL

ASSEMBLY - gauge

4шт.
