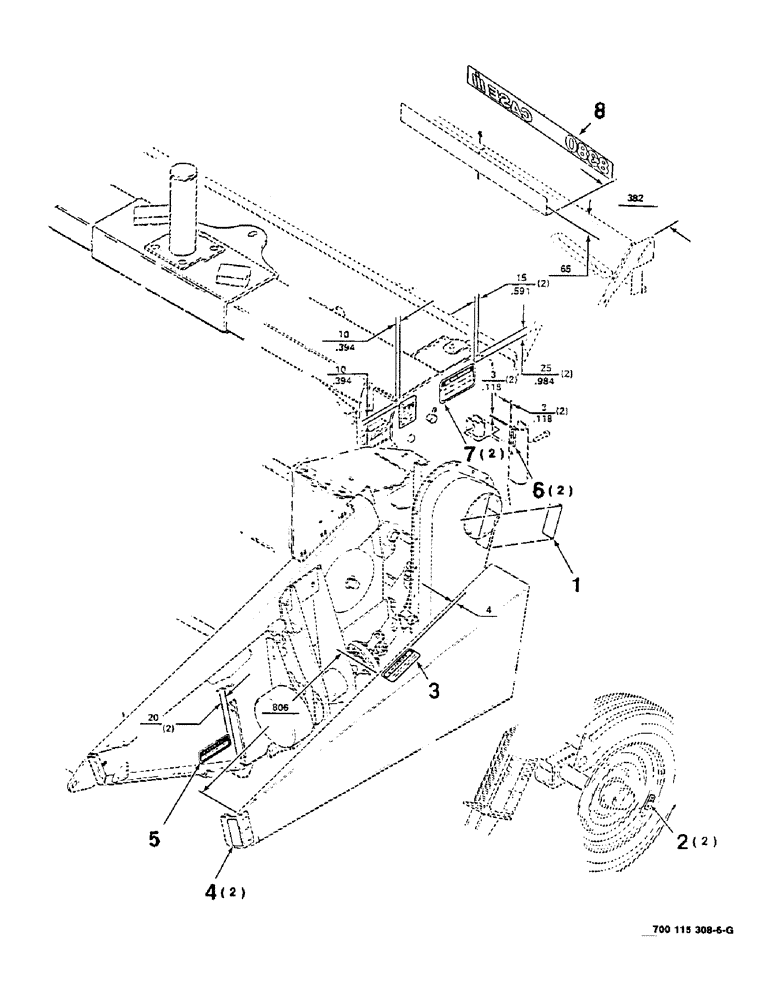

(9-12) - DECAL LOCATION DIAGRAM, HEADER, CONTINUED, SERIAL NUMBER CFH0102133 AND LATER

Запчасти Case IH 8380 (9-12) - DECAL LOCATION DIAGRAM, HEADER, CONTINUED, SERIAL NUMBER CFH0102133 AND LATER (09) - CHASSIS

Схема запчастей Case IH 8380 - (9-12) - DECAL LOCATION DIAGRAM, HEADER, CONTINUED, SERIAL NUMBER CFH0102133 AND LATER (09) - CHASSIS
3
2
5
6
4
7
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

878660

REFLECTOR

- red

1шт.

2

700707196

DECAL

- tire pressure

2шт.

3

7778368

DECAL

- warning

1шт.

4

878694

REFLECTOR

- amber

2шт.

5

700713551

DECAL

- danger

1шт.

6

700706023

DECAL

- safety stop

2шт.

7

779199

DECAL

- warning

2шт.

8

700714293

DECAL

- combo, rear

1шт.
