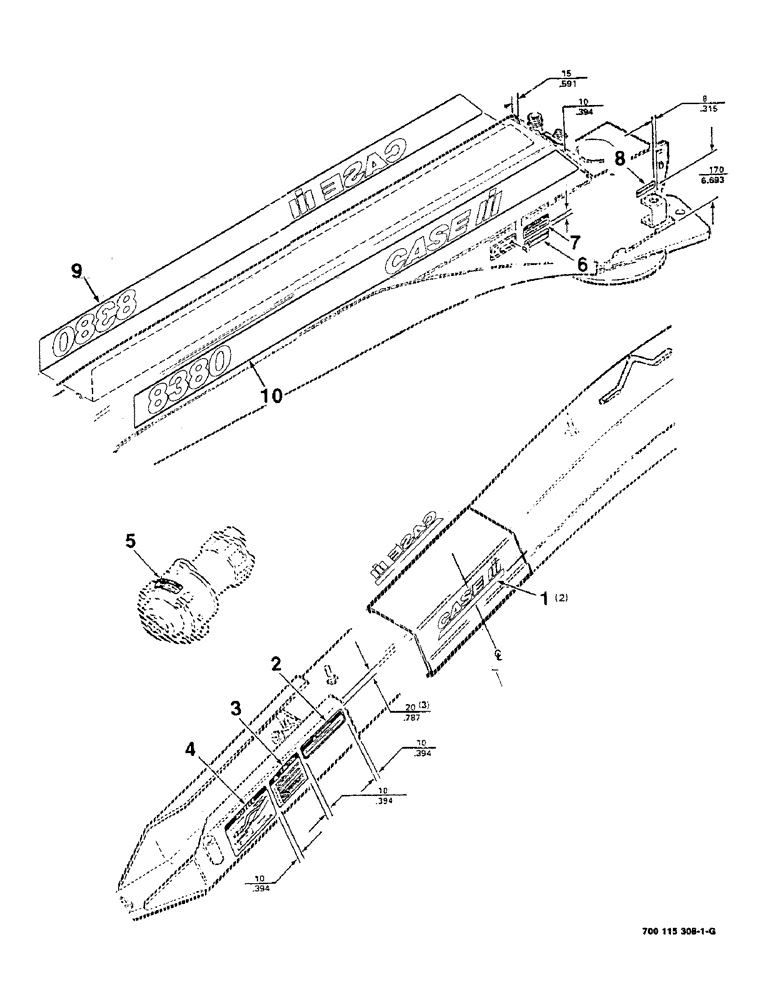

(9-04) - DECAL LOCATION DIAGRAM, TONGUE, SERIAL NUMBER CFH0102133 AND LATER

Запчасти Case IH 8380 (9-04) - DECAL LOCATION DIAGRAM, TONGUE, SERIAL NUMBER CFH0102133 AND LATER (09) - CHASSIS

Схема запчастей Case IH 8380 - (9-04) - DECAL LOCATION DIAGRAM, TONGUE, SERIAL NUMBER CFH0102133 AND LATER (09) - CHASSIS
1
3
7
6
4
5
9
2
8
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

192848A2

DECAL

- Case IH

2шт.

2

700706863

DECAL

- warning

1шт.

3

700714229

DECAL

- caution

1шт.

4

700706859

DECAL

- notice

1шт.

5

7078256

DECAL

- notice, Serial Range: attach-540

1шт.

7078264

DECAL

- notice, Serial Range: attach-1000

1шт.

6

700706864

DECAL

- oil

1шт.

7

7878275

DECAL

- notice, level tongue

1шт.

8

700706862

DECAL

- roading pin

1шт.

9

700714292

DECAL

- combo, right

1шт.

10

700714291

DECAL

- combo, left

1шт.
