(7-26) - SKID SHOE, CENTER, AND WEAR PLATE ASSEMBLY, SERIAL NUMBER CFH0009782 AND LATER

Запчасти Case IH 8380 (7-26) - SKID SHOE, CENTER, AND WEAR PLATE ASSEMBLY, SERIAL NUMBER CFH0009782 AND LATER (09) - CHASSIS

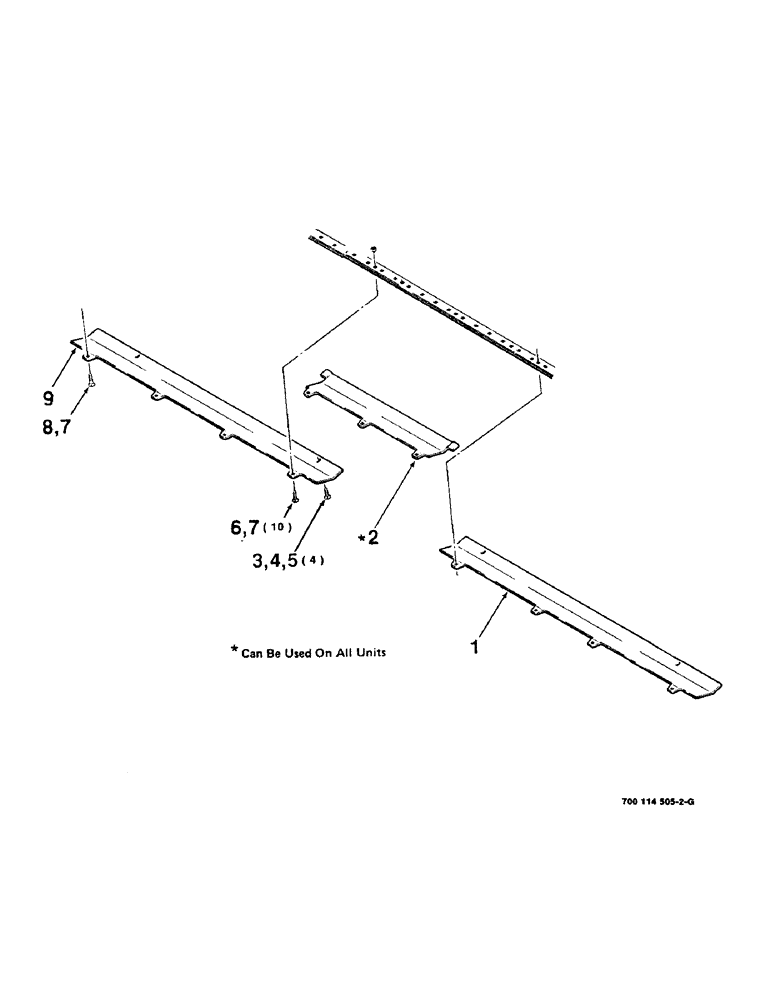

Схема запчастей Case IH 8380 - (7-26) - SKID SHOE, CENTER, AND WEAR PLATE ASSEMBLY, SERIAL NUMBER CFH0009782 AND LATER (09) - CHASSIS
6
7
5
2
7
4
9
8
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700114700

PLATE

WEAR PLATE, left

1шт.

2

700120999

WEAR PLATE

center

1шт.

3

700114701

PLATE

WEAR PLATE, right

1шт.

4

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

4шт.

5

434-716

CARRIAGE BOLT,Sht Sq Nk, 7/16" - 14 x 1", Gr 5

7/16-14 X 1 RHSNB

10шт.

6

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1 1/4", G5

1шт.

7

425-106

NUT,3/8"-16, Cl 5

4шт.

8

425-107

NUT,7/16"-14, G5

7/16-14 H

11шт.

9

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 P

4шт.
